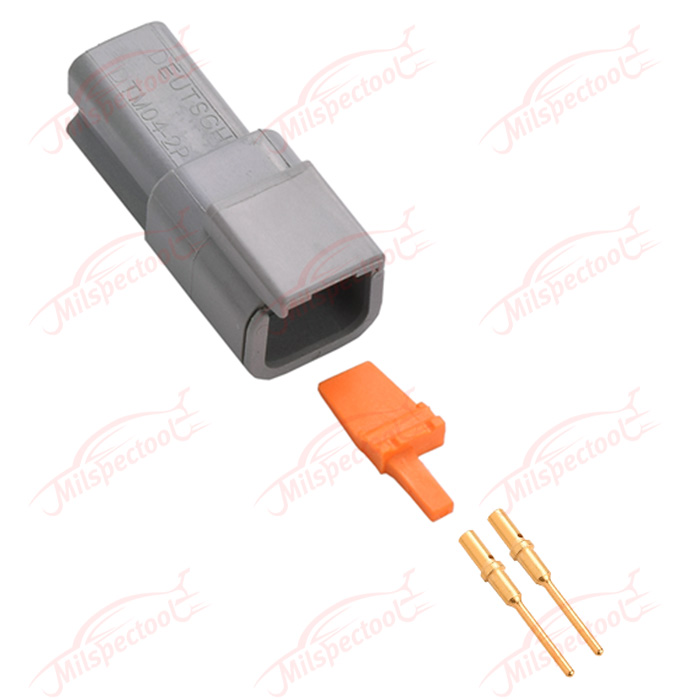

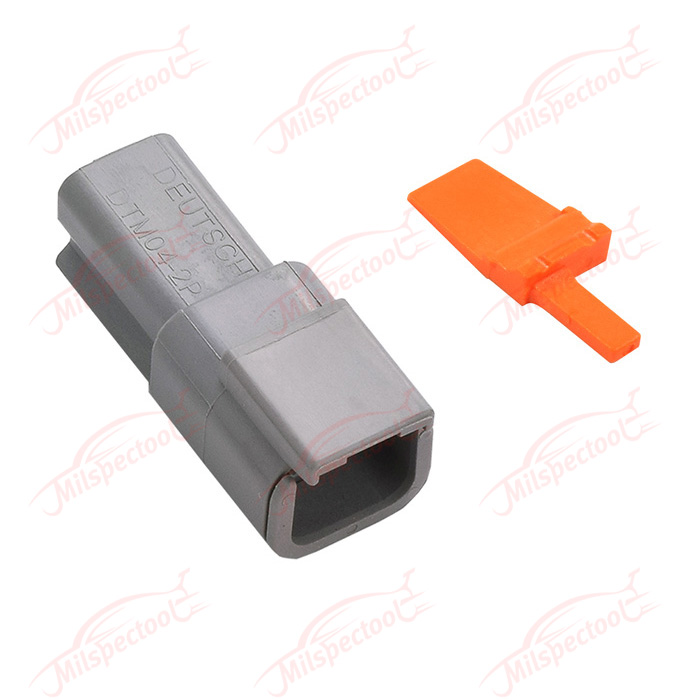

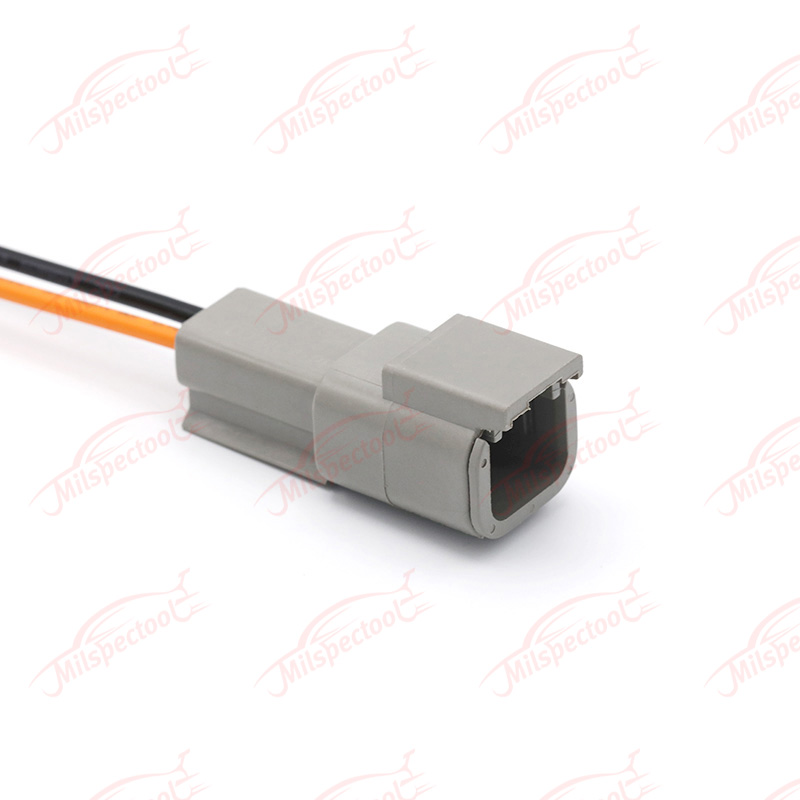

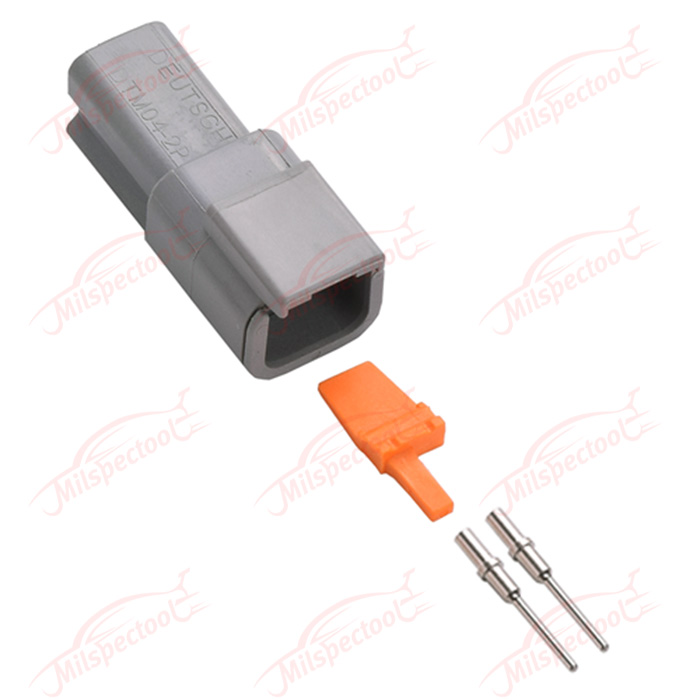

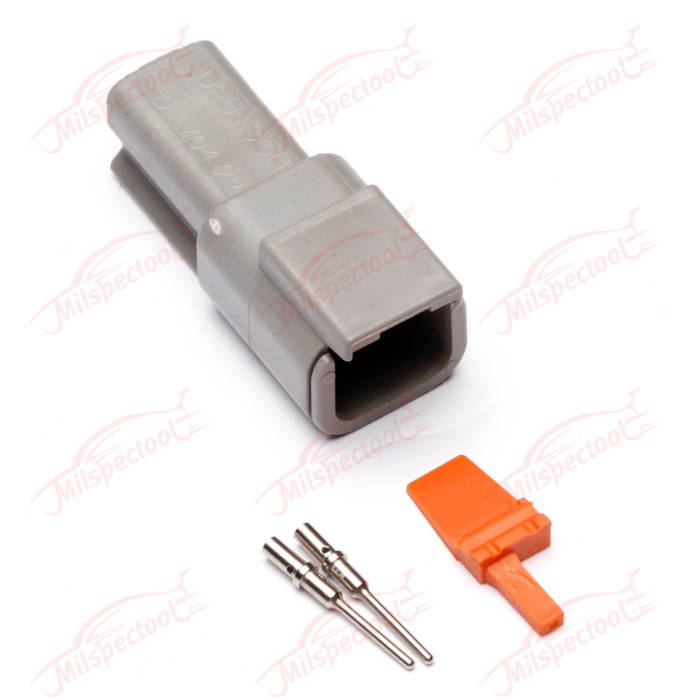

DTM04-2P FEMALE CONNECTOR

Item Number

? DTM04-2P


Item Including

? Connector Housing ×1, Color: Gray

? Wedge Lock ×1, Color: Orange


Product Parameter

? DTM 2 Position Female Connector (Receptacle Housing)

? Match with Male Contact (Pin)-Size 20

? Mating Pin Diameter: 1.02?mm?[?.04?in?]

? Current Rating: 7.5 Amps all contacts

? Wire Range: 18-22 AWG (0.82-0.32mm sq)

? L: 41.15mm W: 16.54mm H: 16.21mm

? Unit Weight: 5.80g / 0.0128lb
