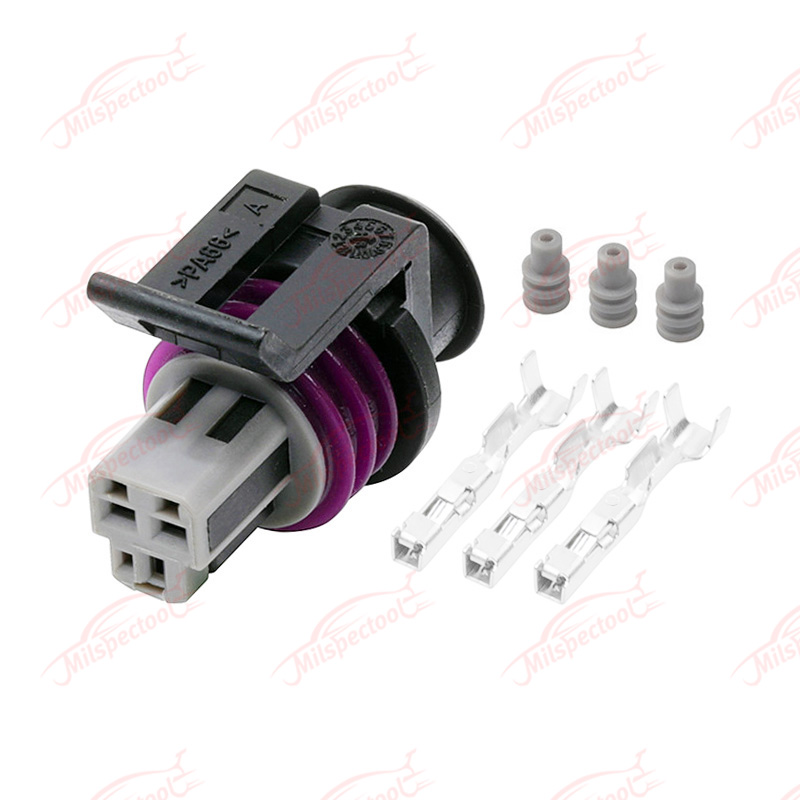

GM TPS MAP 3P CONNECTOR KIT

Item Number

· DE-TPS-GT150-3P

· Delphi Item No.: 15397257, 15397149


Item Including

· Connector Housing ×1

· Lock Part/TPA ×1

· Female Terminal Contact Pin ×3

· Wire Seal/Cavity Plug Seal ×3


Product Parameter

· Delphi 3P Female Connector (Plug Housing)

· Connector Series: GT150 Sealed

· Mating Pin Diameter: 1.5 mm [ .059 in ]

· Current Rating: 15 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 29.0mm W: 22.7mm H: 17.0mm

· Unit Weight: 8.2g / 0.0181lb


Main Application

· GM LS AEM MAP Sensor & Pressure Transducers

· Buick/Chevrolet/Cadillac P2S TPS Throttle Position Sensor
