GM IGN1A COIL 5P CONNECTOR KIT

Item Number

· DE-NGI-MP150-5P

· Delphi Item No.: 12162825, 12162825-B

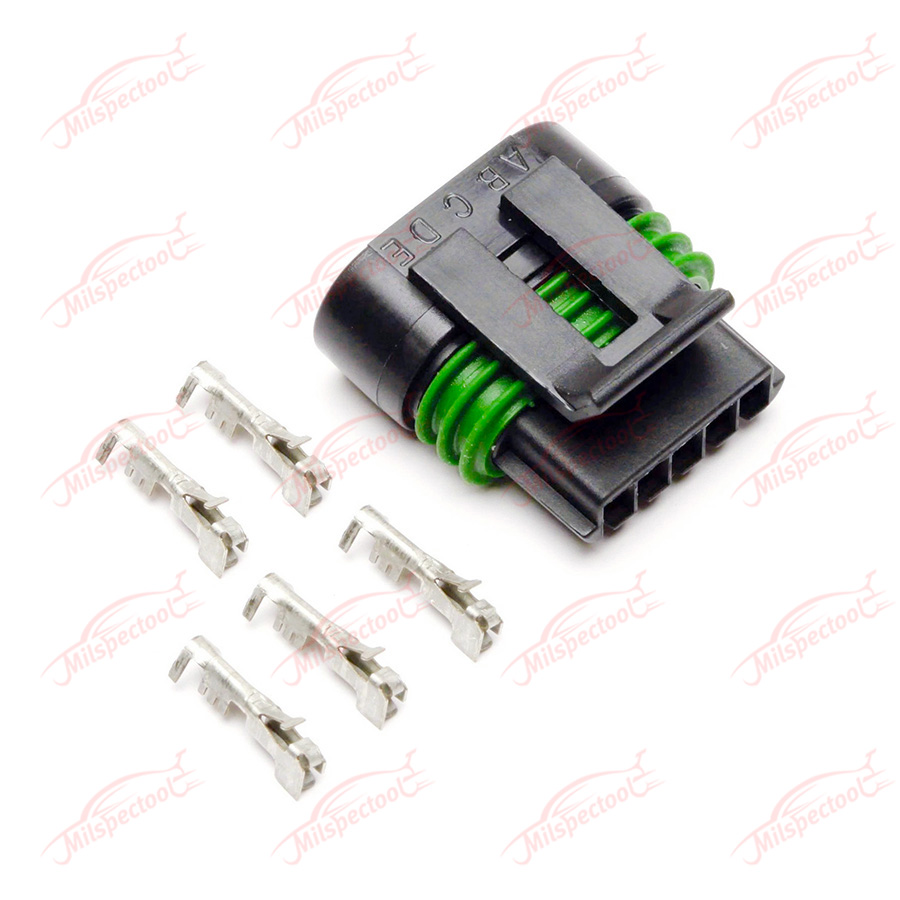

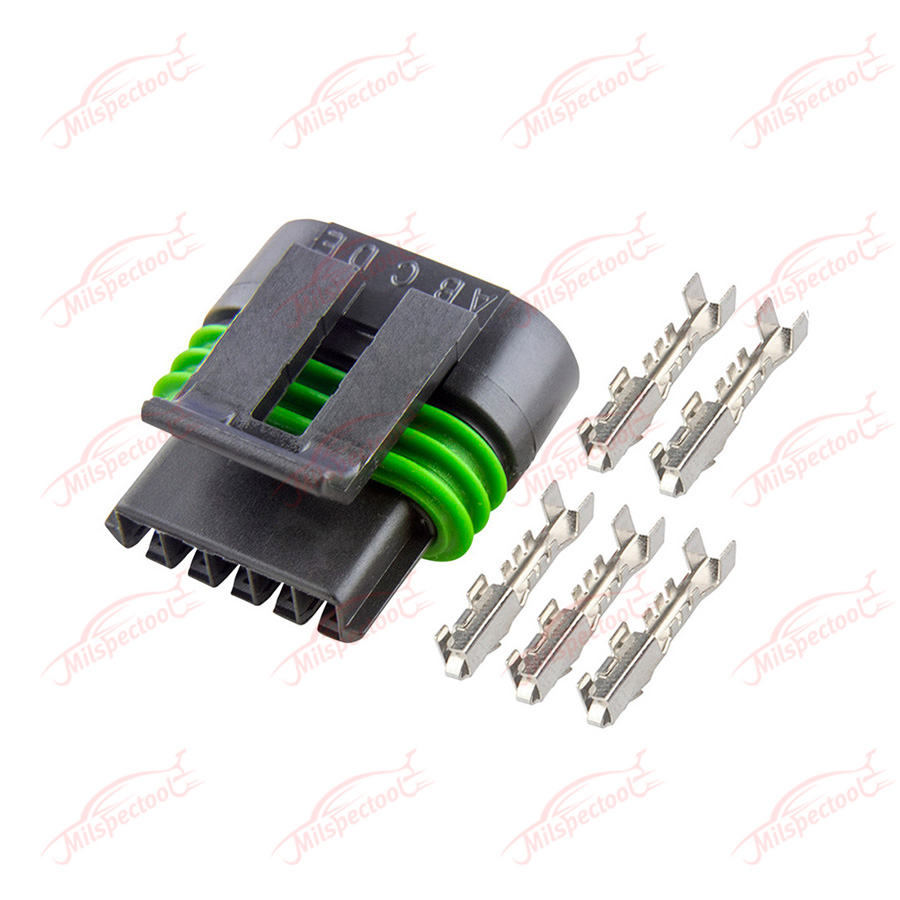

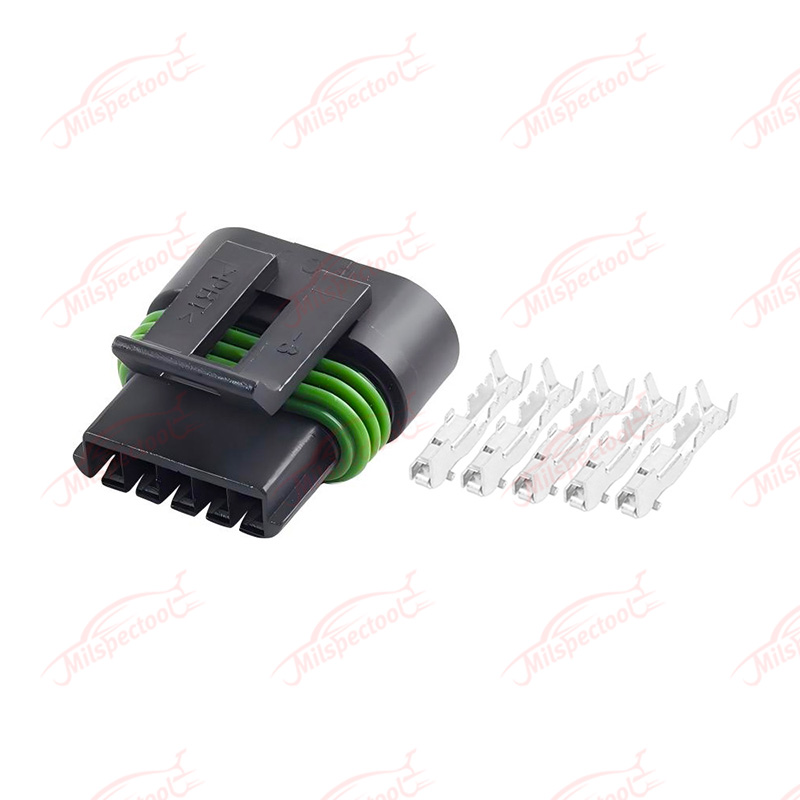

Item Including

· Connector Housing ×1

· Waterproof Rubber Seal ×1

· Female Terminal Contact Pin ×5


Product Parameter

· Delphi 5P Female Connector (Plug Housing)

· Connector Series: Metri-Pack 150 Sealed

· Mating Pin Diameter: 1.5 mm [ .059 in ]

· Current Rating: 14 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 27.1mm W: 26.5mm H: 18.1mm

· Unit Weight: 10.7g / 0.0236lb


Main Application

· GM Weichai Natural Gas IGN1A Ignition Coil
