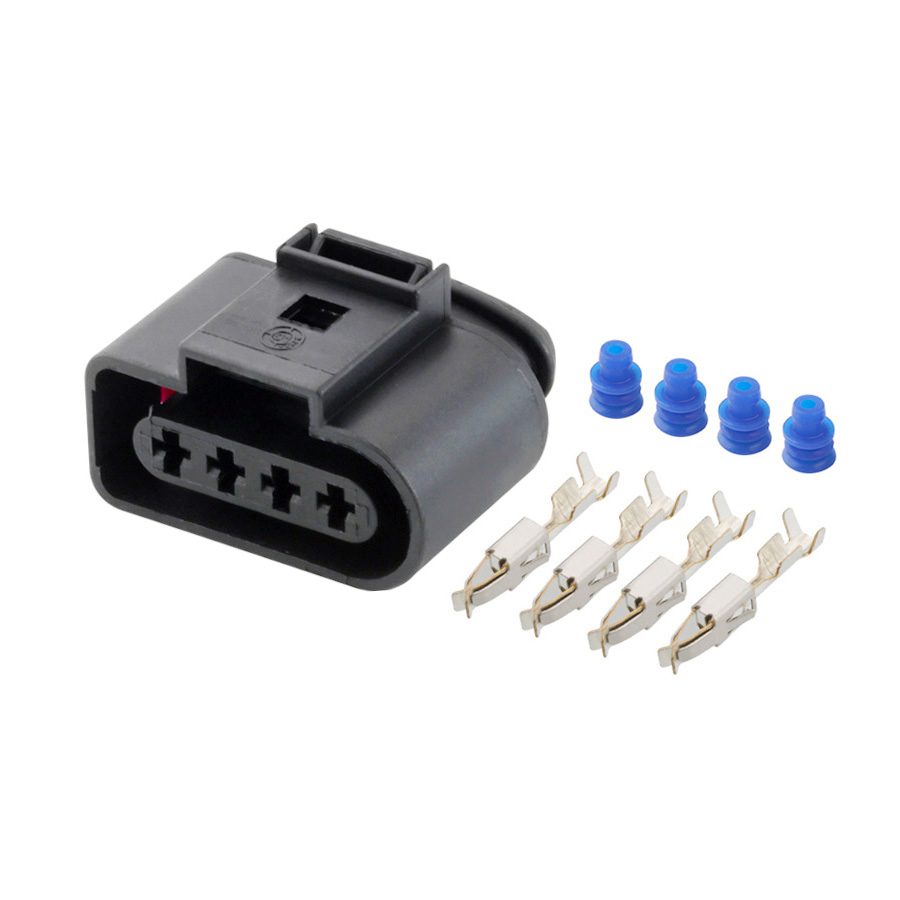

VW AUDI BMW COP COIL ON PLUG 4P CONNECTOR KIT

Item Number

· VW-COP-VAG35-4P

· VW Item No.: 1J0 973 724, 4B0 973 724

Item Including

· Connector Housing ×1

· Lock Part/TPA ×1

· Female Terminal Contact Pin ×4

· Wire Seal/Cavity Plug Seal ×4

Product Parameter

· VW 4P Female Connector (Plug Housing)

· Connector Series: VAG 3.5mm Sealed

· Mating Pin Diameter: 3.5 mm [ .138 in ]

· Current Rating: 25 Amps all contacts

· Wire Range: 12-14 AWG (2.08-3.33mm sq)

· L: 33.3mm W: 37.6mm H: 22.5mm

· Unit Weight: 12.1g / 0.0267lb

Main Application

· VW/Audi/BMW/Porsche Ignition Coil Pigtail

· Fit some Audi A4, A6, A8, Q7, RS4, RS6, S5, S6, S8, TT, Volkswagen Beetle, Eos, EuroVan, GTI, Golf, Jetta, Passat, Phaeton, Rabbit, Touareg
