VW FEP BOSCH LSU 4.9 TPS 6P CONNECTOR KIT

Item Number

· VW-TPS-LSU49-6P

· VW Item No.: 1J0 973 713

· FEP Item No.: 42121700

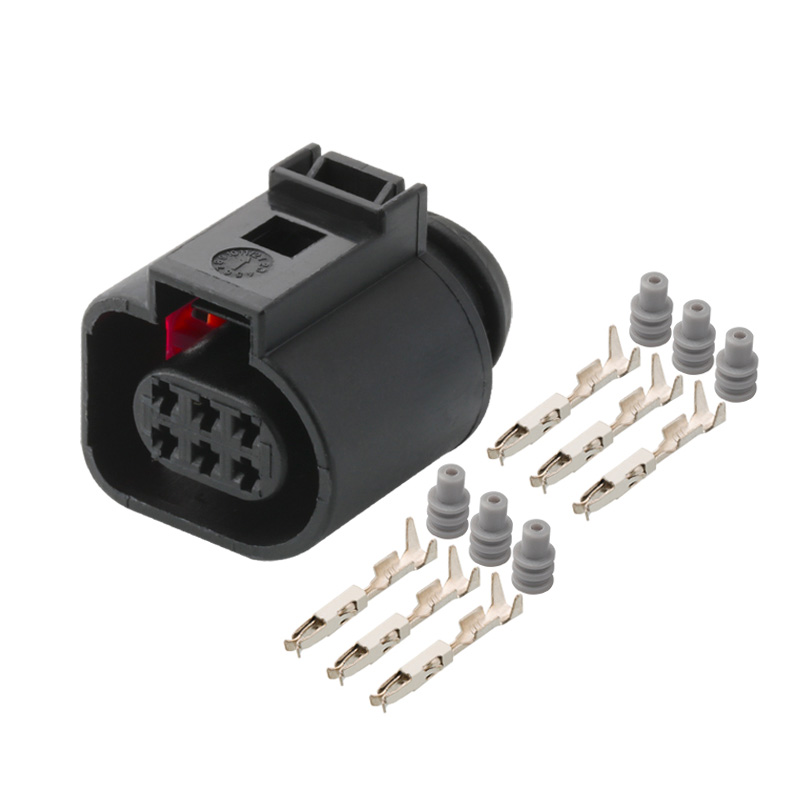

Item Including

· Connector Housing ×1

· Lock Part/TPA ×1

· Female Terminal Contact Pin ×6

· Wire Seal/Cavity Plug Seal ×6

Product Parameter

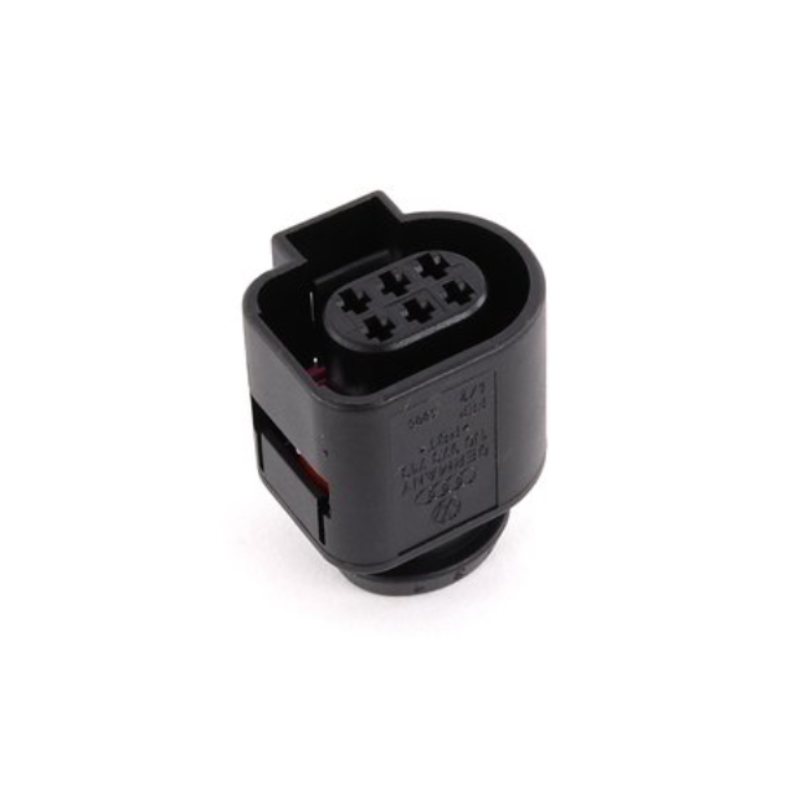

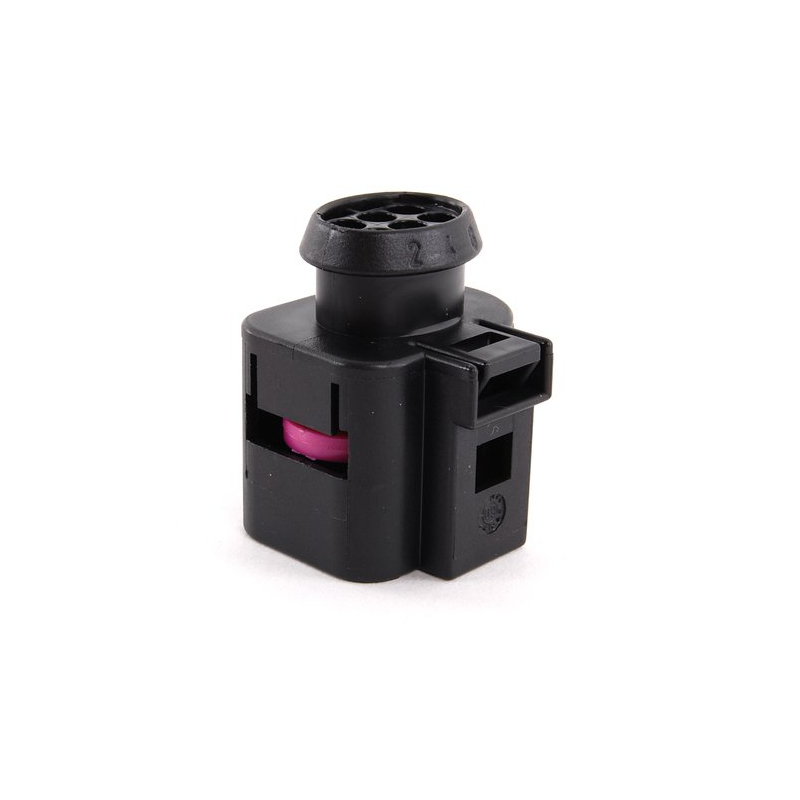

· VW 6P Female Connector (Plug Housing)

· Connector Series: VAG 1.5mm Sealed

· Mating Pin Diameter: 1.5 mm [ .059 in ]

· Current Rating: 15 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 31.5mm W: 25.2mm H: 25.5mm

· Unit Weight: 16.2g / 0.0357lb

Main Application

· VW/Audi/Skoda/Benz Throttle Position Sensor

· Bosch LSU 4.9 Wideband O2 Lambda Sensor

· VW/Audi/Skoda/Benz Reversing Radar Sensor
