$ 0.841
Item Number
· DE-LCS-MP150-7P
· Delphi Item No.: 12047938

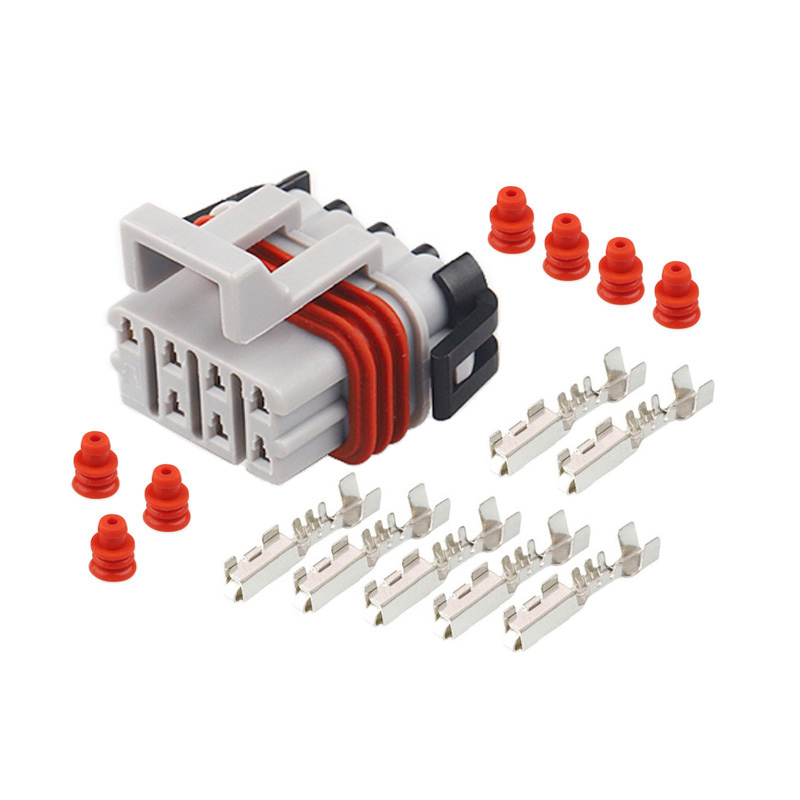

Item Including
· Connector Housing ×1
· Lock Part/TPA ×1
· Female Terminal Contact Pin ×7
· Wire Seal/Cavity Plug Seal ×7
Product Parameter
· Delphi 7P Female Connector (Plug Housing)
· Connector Series: GT150 Sealed
· Mating Pin Diameter: 1.5 mm [ .059 in ]
· Current Rating: 14 Amps all contacts
· Wire Range: 18-22 AWG (0.82-0.32mm sq)
· L: 27.4mm W: 35.2mm H: 28.8mm
· Unit Weight: 16.6g / 0.0366lb
Main Application
· GM LSx Coil Sub-Harnesses
· GM LS1 LS2 LS3 Coil Pack Harness
