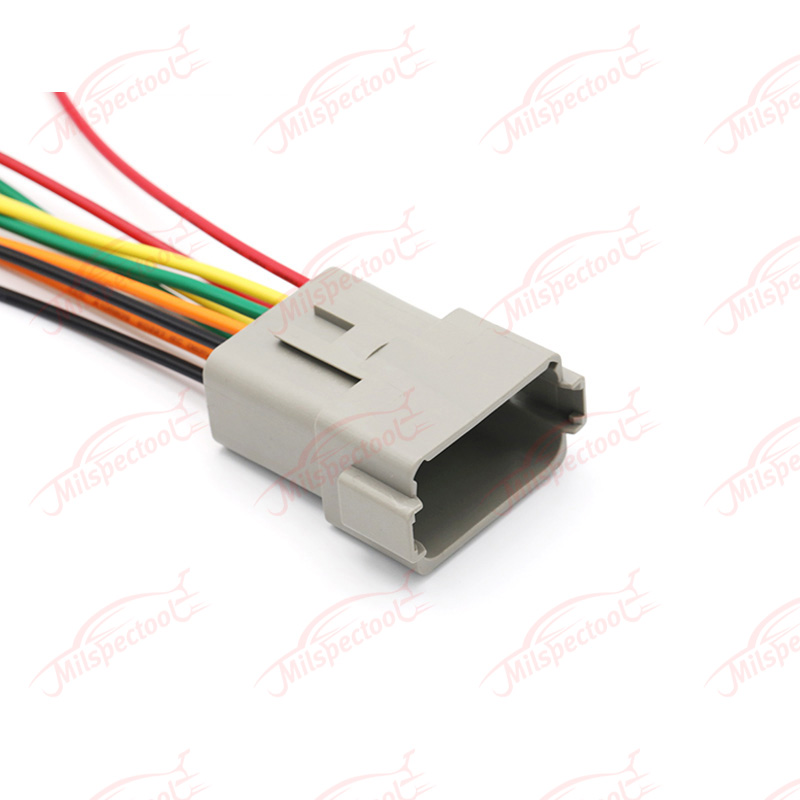

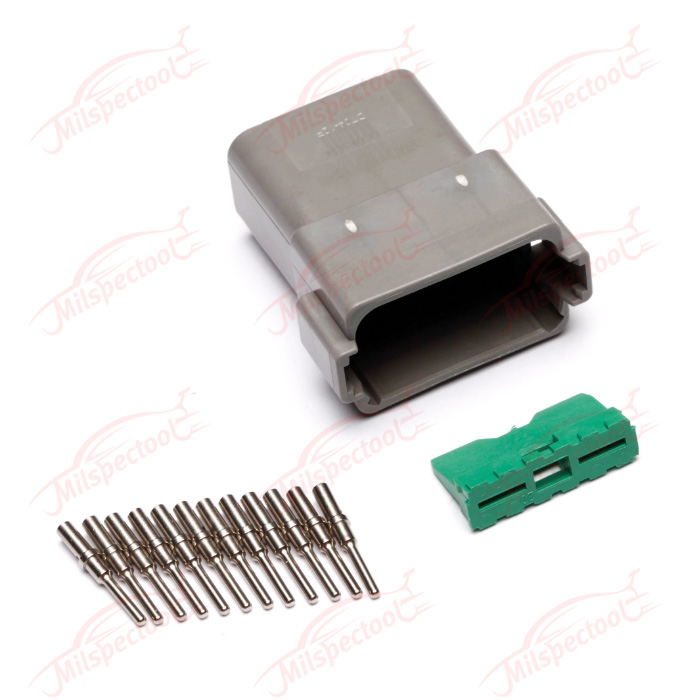

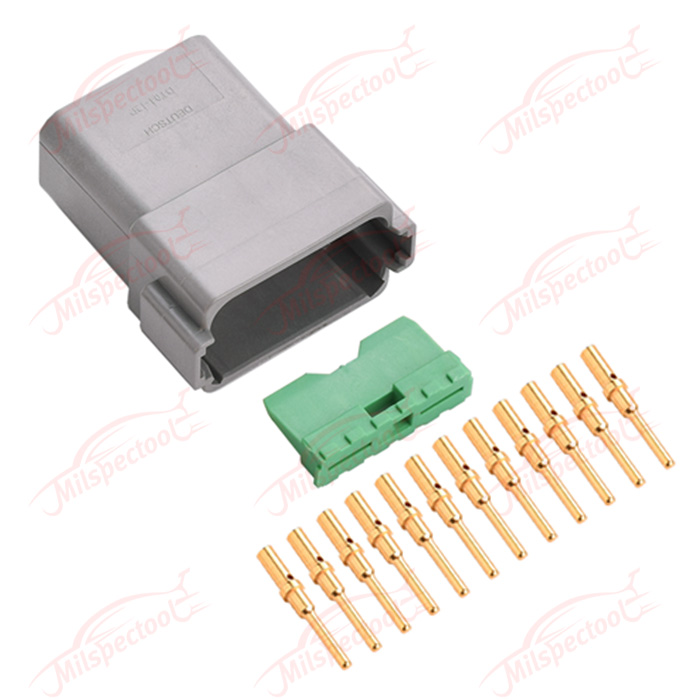

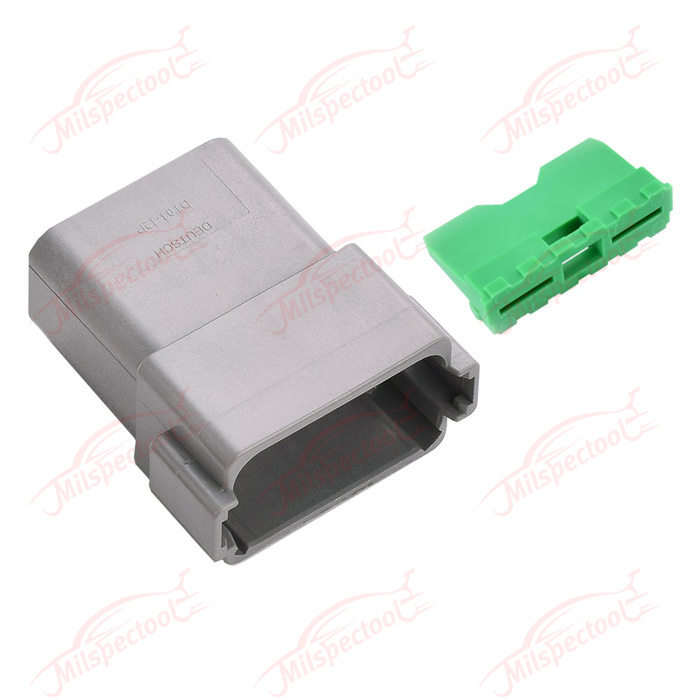

DT04-12PA FEMALE CONNECTOR

$ 1.612

Item Number

· DT04-12PA

Item Including

· Connector Housing ×1, Color: Gray

· Wedge Lock ×1, Color: Green

Product Parameter

· DT 12 Position Female Connector (Receptacle Housing)

· Match with Male Contact (Pin)-Size 16

· Mating Pin Diameter: 1.59 mm [ .0625 in ]

· Current Rating: 13 Amps all contacts

· Wire Range: 14-20 AWG (2.00-0.50mm sq)

· L: 45.92mm W: 22.25mm H: 40.56mm

· Unit Weight: 20.10g / 0.0443lb
