$ 1.612
Item Number
· DT06-12SA

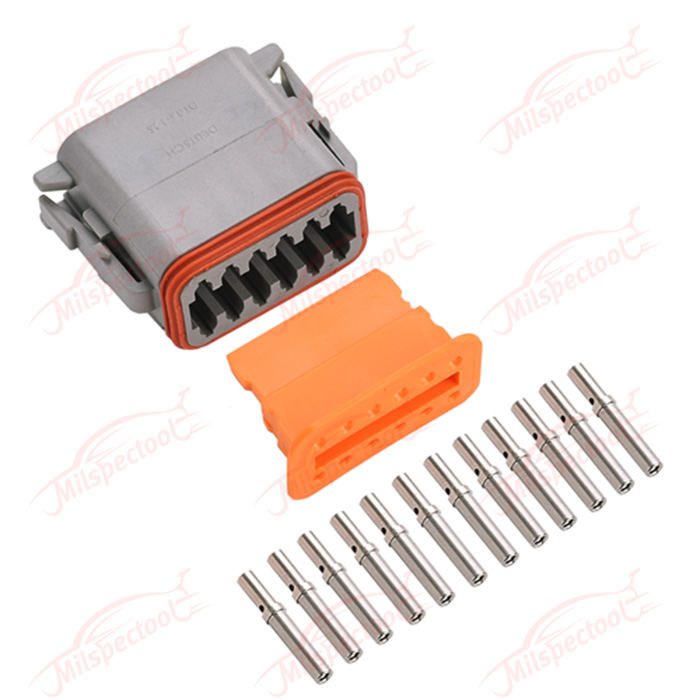

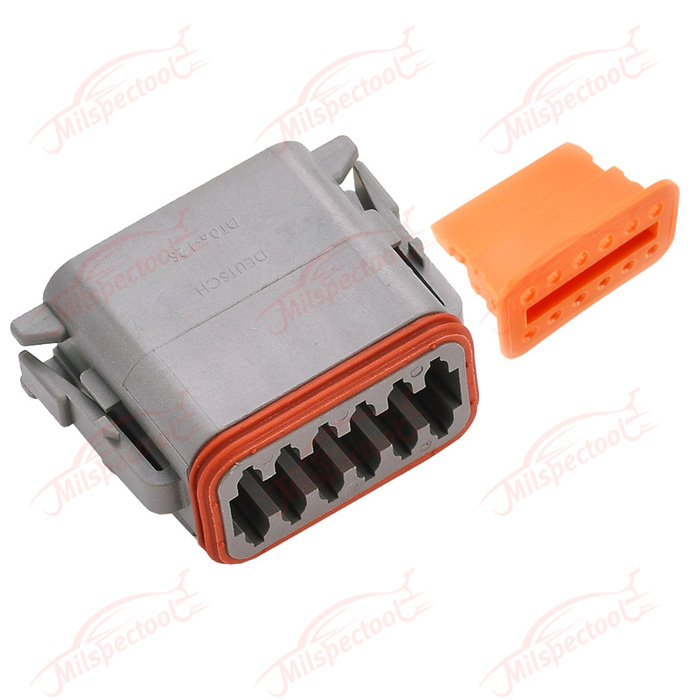

Item Including
· Connector Housing ×1, Color: Gray
· Wedge Lock ×1, Color: Orange
Product Parameter

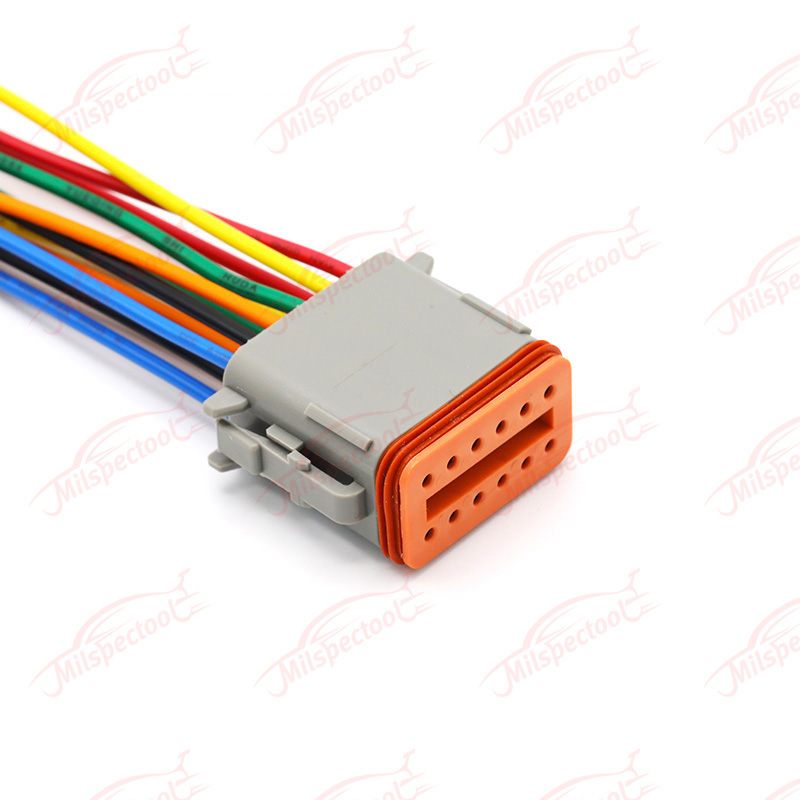

· DT 12 Position Male Connector (Plug Housing)
· Match with Female Contact (Socket)-Size 16
· Mating Pin Diameter: 1.59 mm [ .0625 in ]
· Current Rating: 13 Amps all contacts
· Wire Range: 14-20 AWG (2.00-0.50mm sq)
· L: 30.94mm W: 40.56mm H: 18.23mm
· Unit Weight: 17.60g / 0.0388lb
