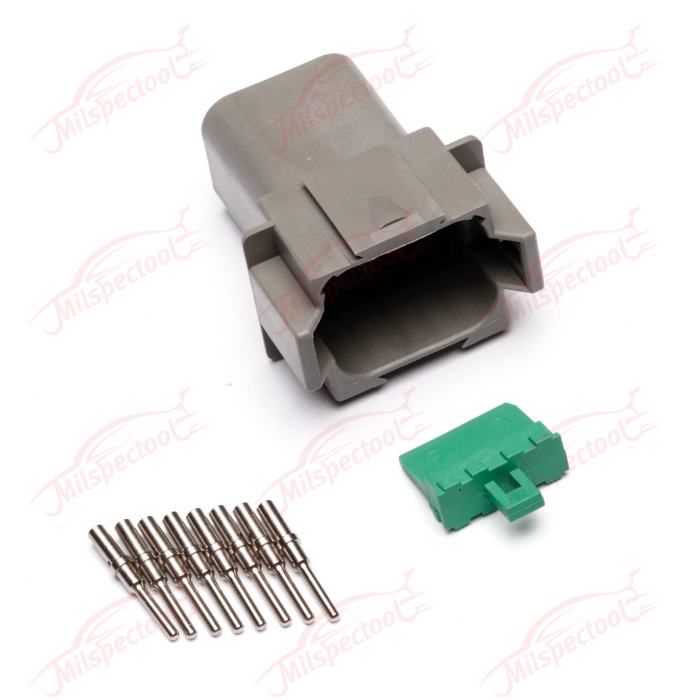

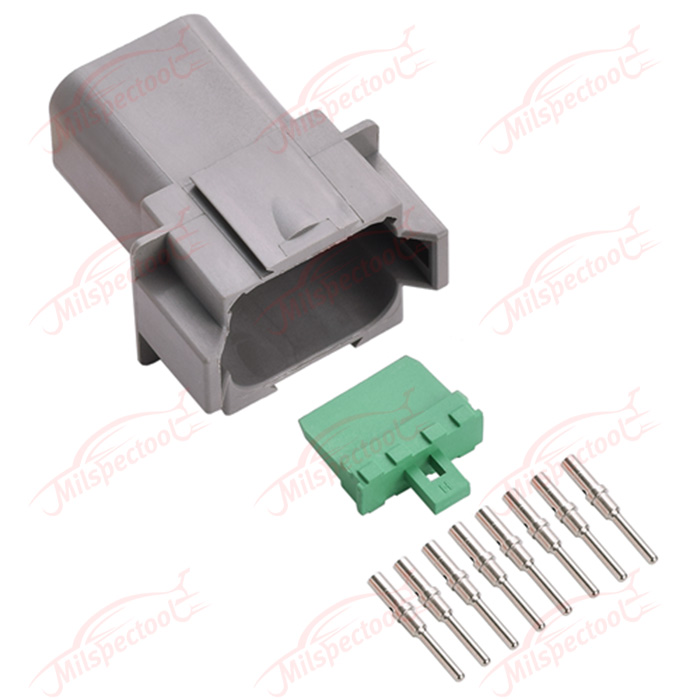

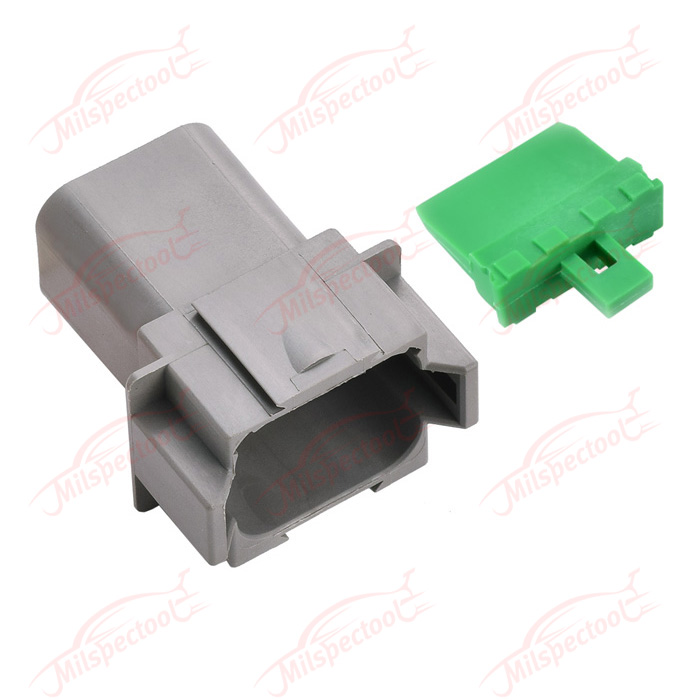

DT04-08PA FEMALE CONNECTOR

$ 1.424

Item Number

· DT04-08PA

Item Including

· Connector Housing ×1, Color: Gray

· Wedge Lock ×1, Color: Green

Product Parameter

· DT 8 Position Female Connector (Receptacle Housing)

· Match with Male Contact (Pin)-Size 16

· Mating Pin Diameter: 1.59 mm [ .0625 in ]

· Current Rating: 13 Amps all contacts

· Wire Range: 14-20 AWG (2.00-0.50mm sq)

· L: 45.67mm W: 36.45mm H: 25.4mm

· Unit Weight: 18.70g / 0.0413lb
