$ 12.12
Item Number

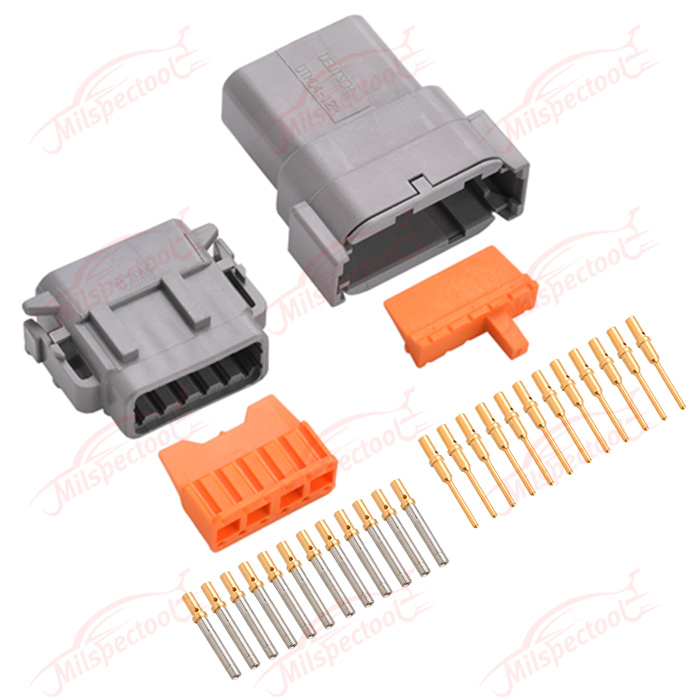

· DTM12-G-Kit
Item Including
· DTM 12-Way Male Connector Housing ×1
· DTM 12-Way Female Connector Housing ×1
· DTM 12-Way Male Wedge Lock ×1
· DTM 12-Way Female Wedge Lock ×1
· Size 20 Gold Solid Pin ×12
· Size 20 Gold Solid Socket ×12
Product Parameter

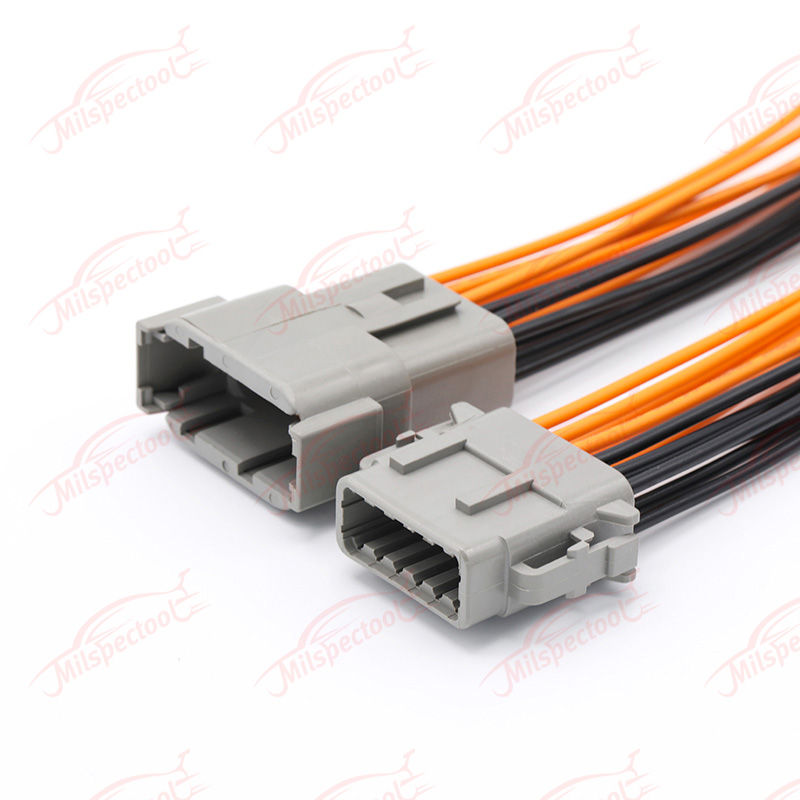

· DTM 12-Way Gold Connector Kit
· Contact Size: Pin / Socket -Size 20
· Mating Pin Diameter: 1.02 mm [ .04 in ]
· Current Rating: 7.5 Amps all contacts
· Wire Range: 18-22 AWG (0.82-0.32mm sq)
· Unit Weight: 38.20g / 0.0842lb
