$ 5.31
Item Number
· DTM6-N-Kit
Item Including
· DTM 6-Way Male Connector Housing ×1
· DTM 6-Way Female Connector Housing ×1
· DTM 6-Way Male Wedge Lock ×1
· DTM 6-Way Female Wedge Lock ×1
· Size 20 Nickel Solid Pin ×6
· Size 20 Nickel Solid Socket ×6
Product Parameter

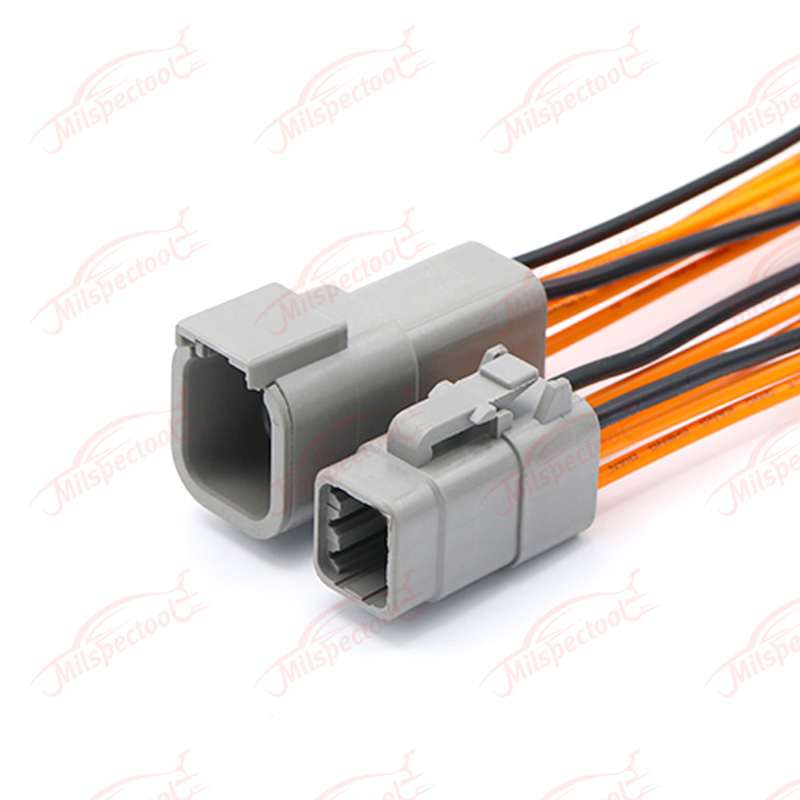

· DTM 6-Way Nickel Connector Kit
· Contact Size: Pin / Socket -Size 20
· Mating Pin Diameter: 1.02 mm [ .04 in ]
· Current Rating: 7.5 Amps all contacts
· Wire Range: 18-22 AWG (0.82-0.32mm sq)
· Unit Weight: 21.80g / 0.0481lb
