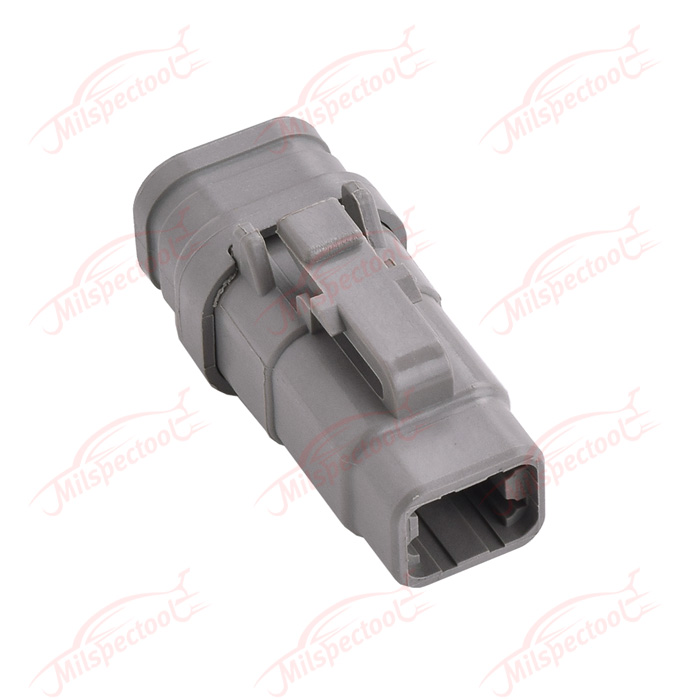

DTM06-4S-E007 MALE CONNECTOR WITH SHRINK BOOT ADAPTOR

$ 0.986

Item Number

· DTM06-4S-E007

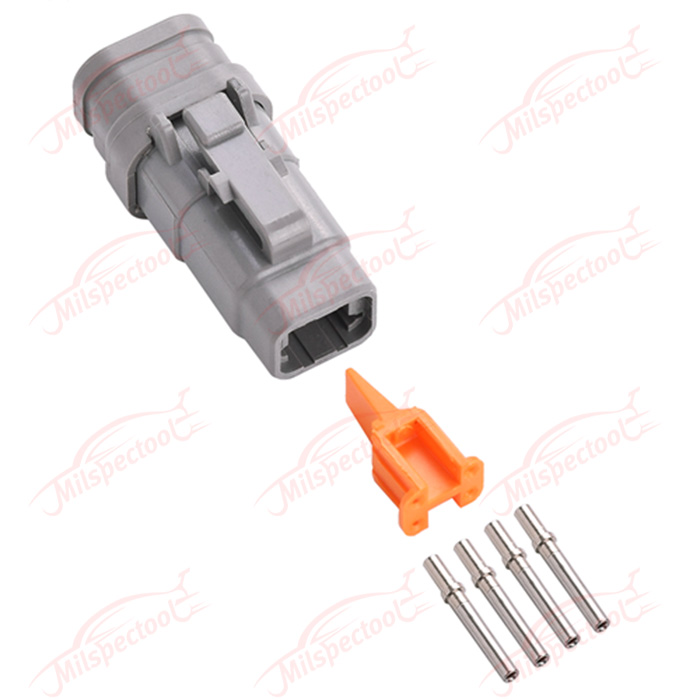

Item Including

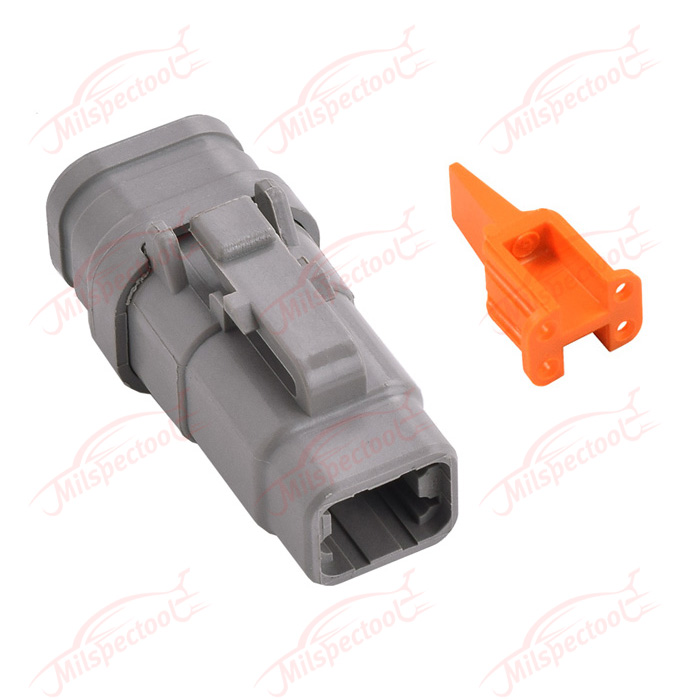

· Connector Housing ×1, Color: Gray

· Wedge Lock ×1, Color: Orange

Product Parameter

· DTM 4 Position Male Plug With Shrink Boot Adaptor

· Match with Female Contact (Socket)-Size 20

· Mating Pin Diameter: 1.02 mm [ .04 in ]

· Current Rating: 7.5 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 39.89mm W: 17.63mm H: 18.85mm

· Unit Weight: 7.20g / 0.0159lb
