$ 0.698
Item Number
· SM-KIC-HX090-3P
· Sumitomo Item No.: 6189-0728

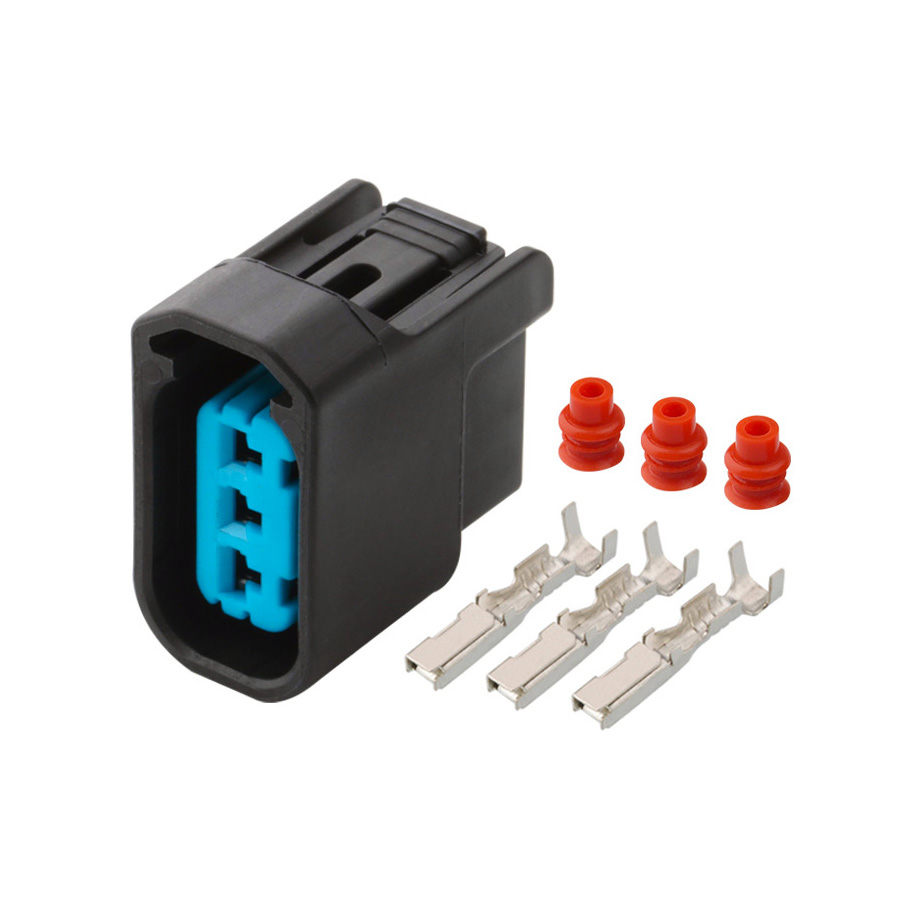

Item Including
· Connector Housing ×1
· Lock Part/TPA ×1
· Female Terminal Contact Pin ×3
· Wire Seal/Cavity Plug Seal ×3
Product Parameter

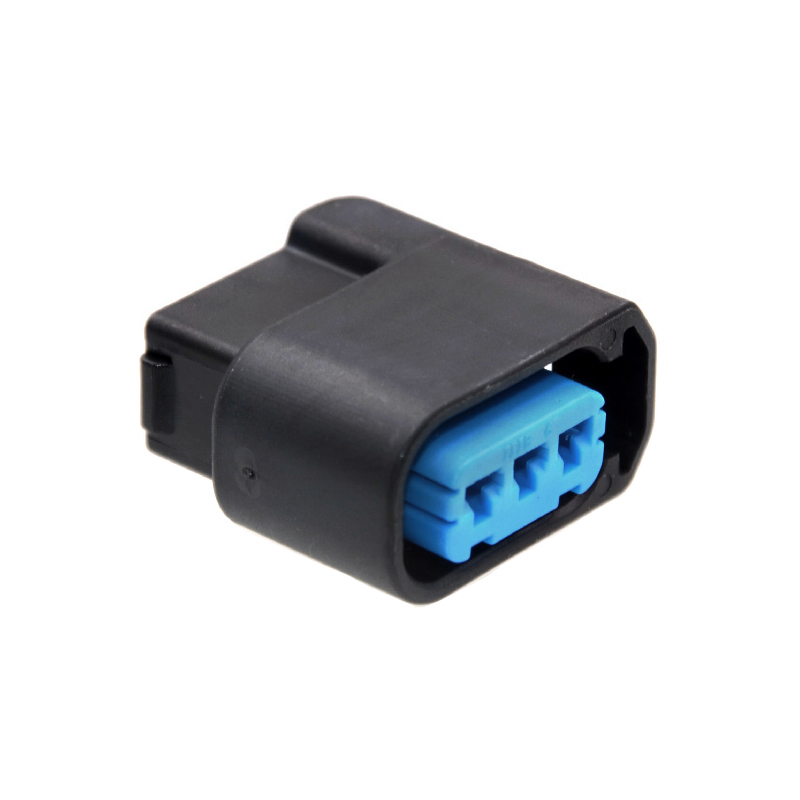

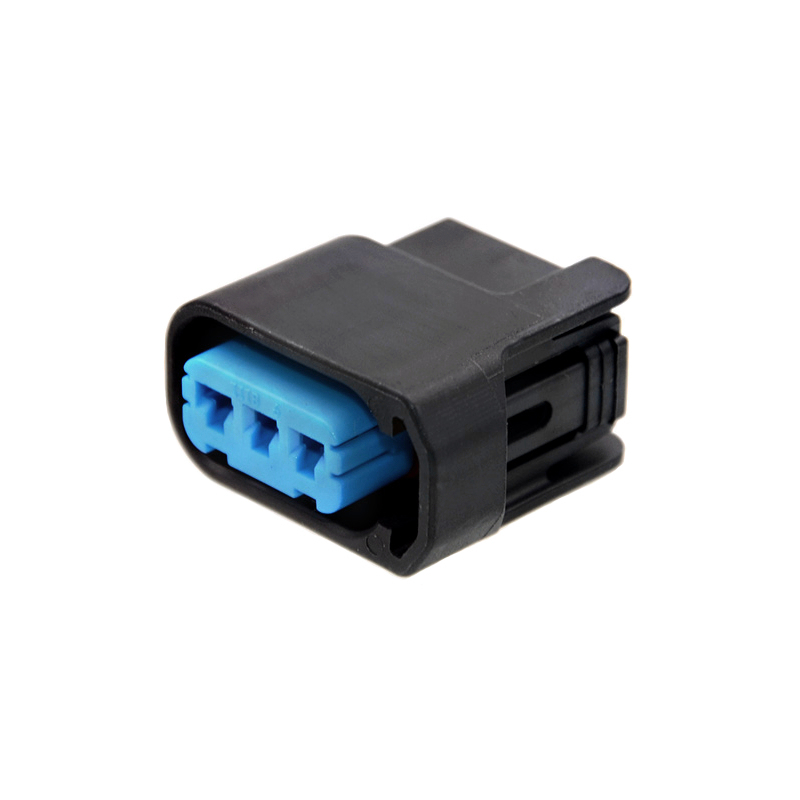

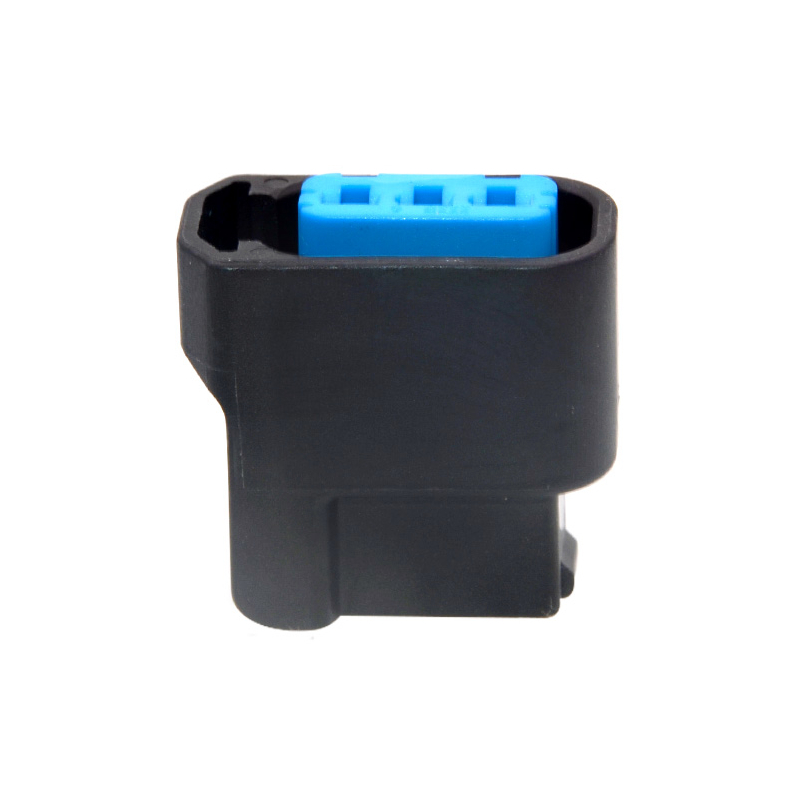

· Sumitomo 3P Female Connector (Plug Housing)
· Connector Series: HX 090 Sealed
· Mating Pin Diameter: 2.3 mm [ .090 in ]
· Current Rating: 10 Amps all contacts
· Wire Range: 18-22 AWG (0.82-0.32mm sq)
· L: 27.7mm W: 29.9mm H: 15.9mm
· Unit Weight: 10.2g / 0.0225lb
Main Application
· Honda K20/K24 etc K Series Ignition Coil
· Honda 02-10 F-Series S2000 Pencil Ignition Coil
