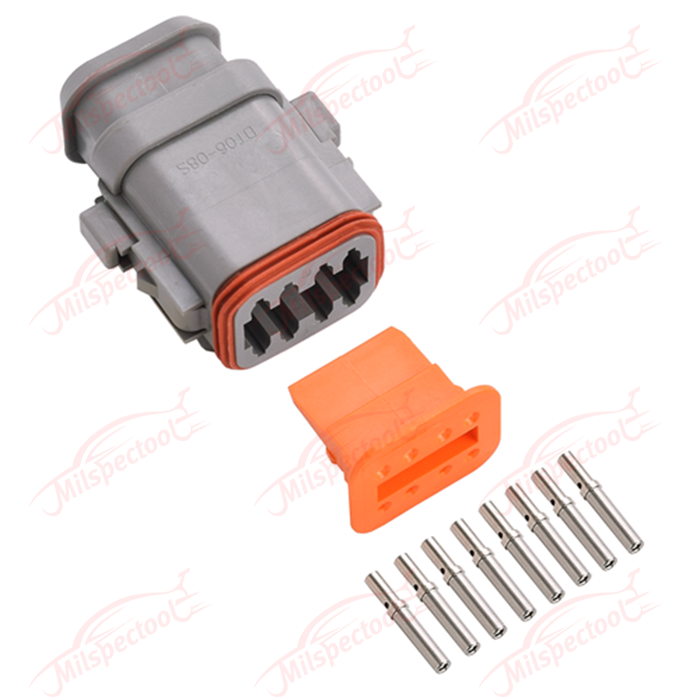

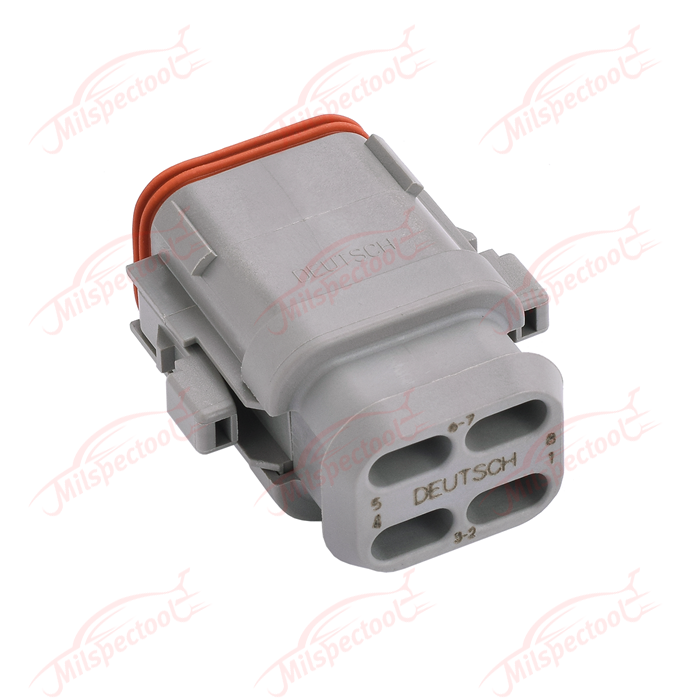

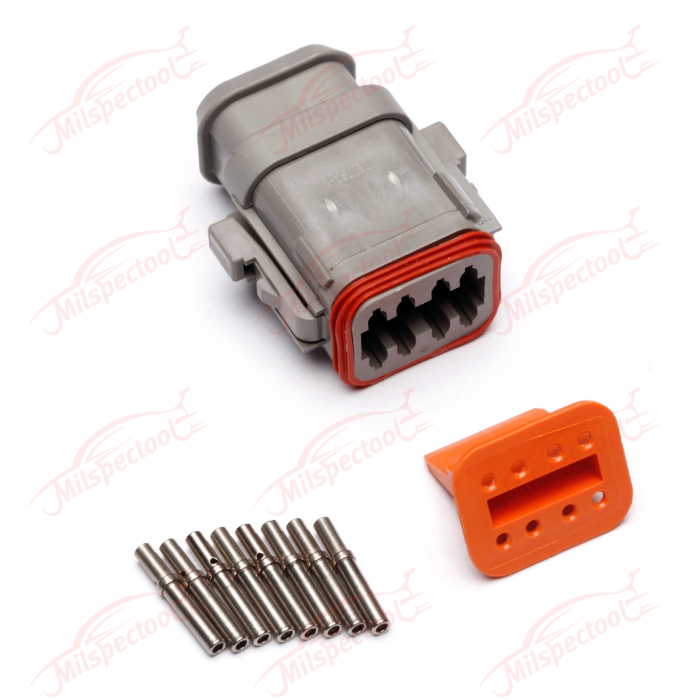

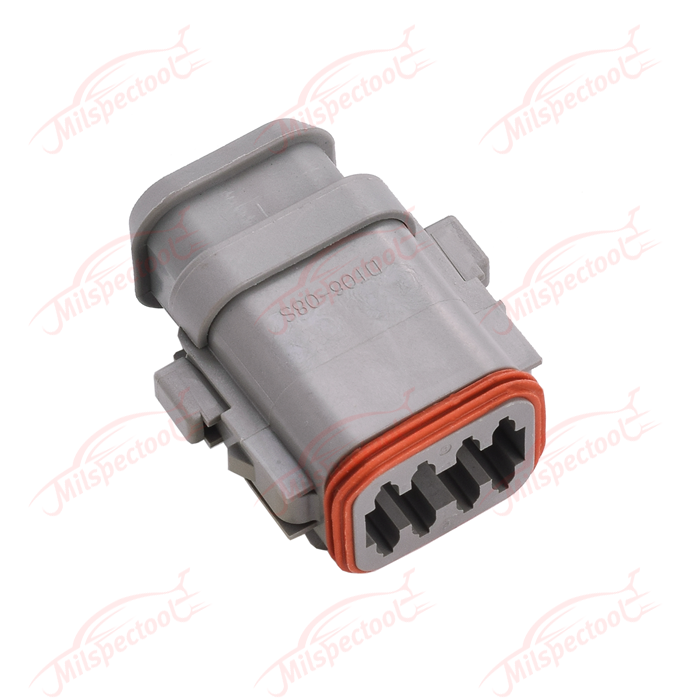

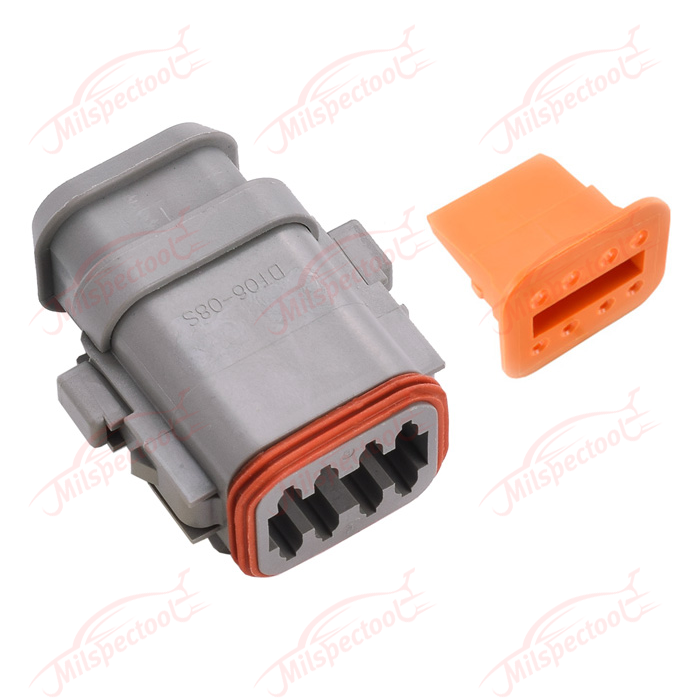

DT06-08SA-E008 MALE CONNECTOR WITH SHRINK BOOT ADAPTOR

$ 1.912

Item Number

· DT06-08SA-E008

Item Including

· Connector Housing ×1, Color: Gray

· Wedge Lock ×1, Color: Orange

Product Parameter

· DT 8 Position Male Plug With Shrink Boot Adaptor

· Match with Female Contact (Socket)-Size 16

· Mating Pin Diameter: 1.59 mm [ .0625 in ]

· Current Rating: 13 Amps all contacts

· Wire Range: 14-20 AWG (2.00-0.50mm sq)

· L: 44.25mm W: 37.21mm H: 22.15mm

· Unit Weight: 20.10g / 0.0443lb
