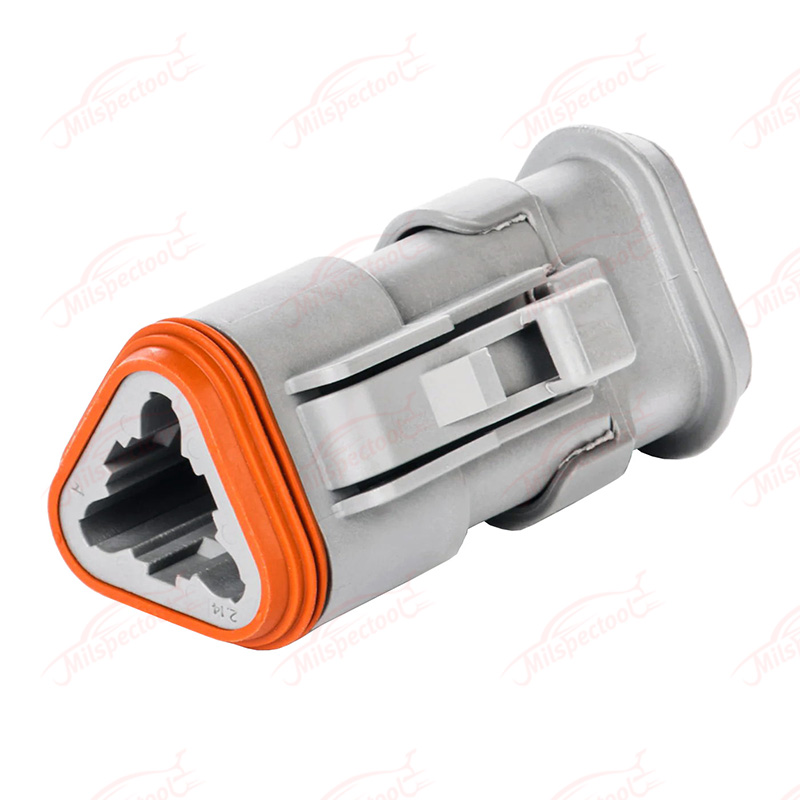

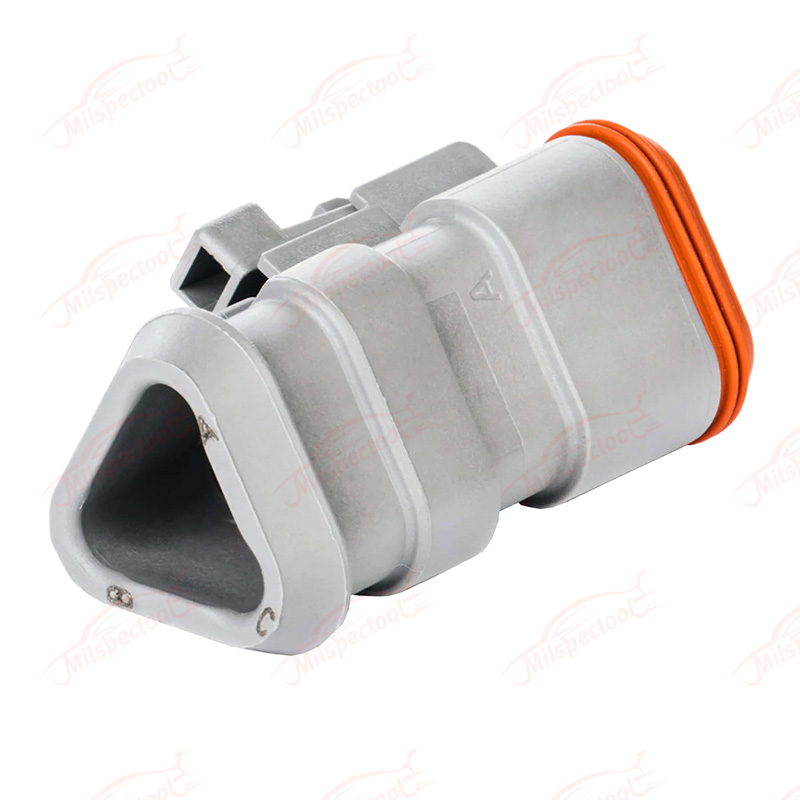

DT06-3S-E008 MALE CONNECTOR WITH SHRINK BOOT ADAPTOR

$ 0.956

Item Number

· DT06-3S-E008

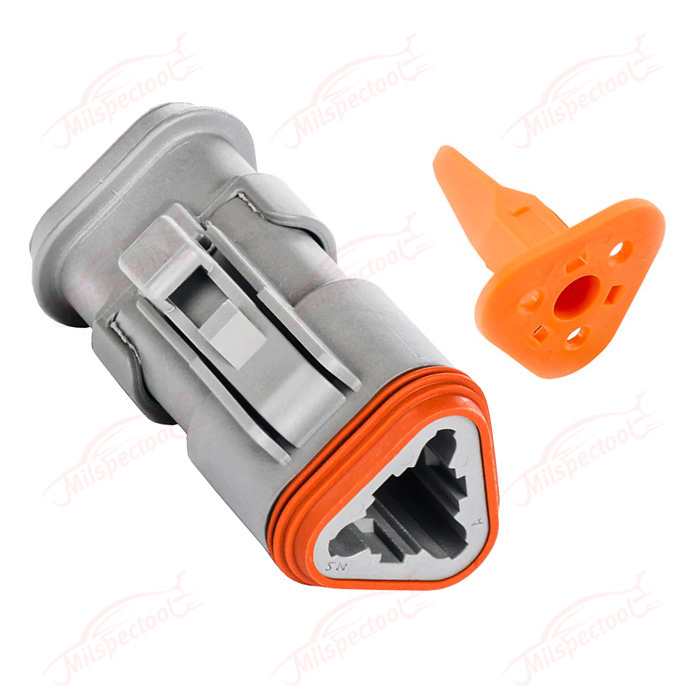

Item Including

· Connector Housing ×1, Color: Gray

· Wedge Lock ×1, Color: Orange

Product Parameter

· DT 3 Position Male Plug With Shrink Boot Adaptor

· Match with Female Contact (Socket)-Size 16

· Mating Pin Diameter: 1.59 mm [ .0625 in ]

· Current Rating: 13 Amps all contacts

· Wire Range: 14-20 AWG (2.00-0.50mm sq)

· L: 40.67mm W: 20.23mm H: 24.60mm

· Unit Weight: 9.80g / 0.0216lb
