$ 1.478
Item Number
· DTM06-12SA

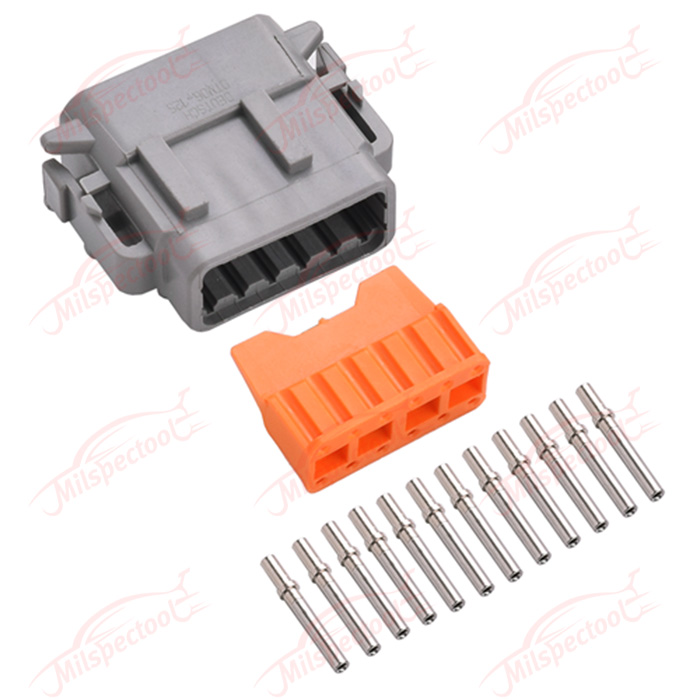

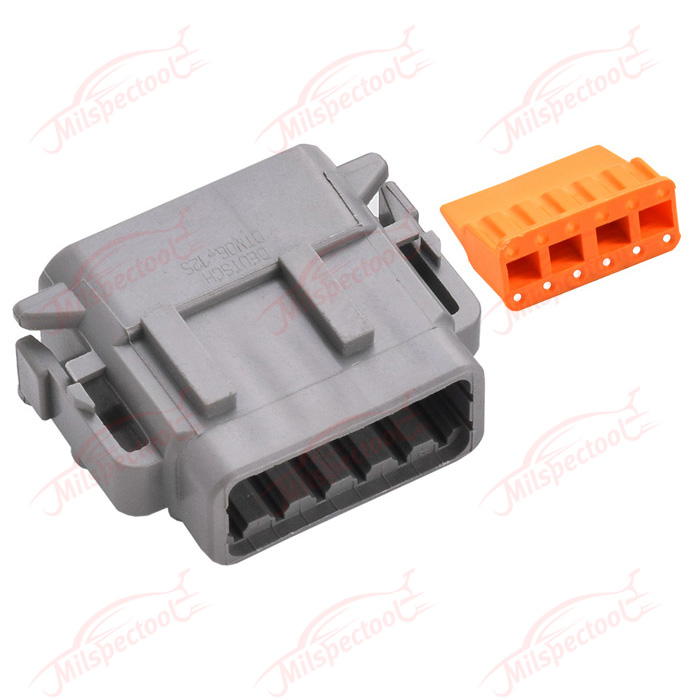

Item Including
· Connector Housing ×1, Color: Gray
· Wedge Lock ×1, Color: Orange
Product Parameter

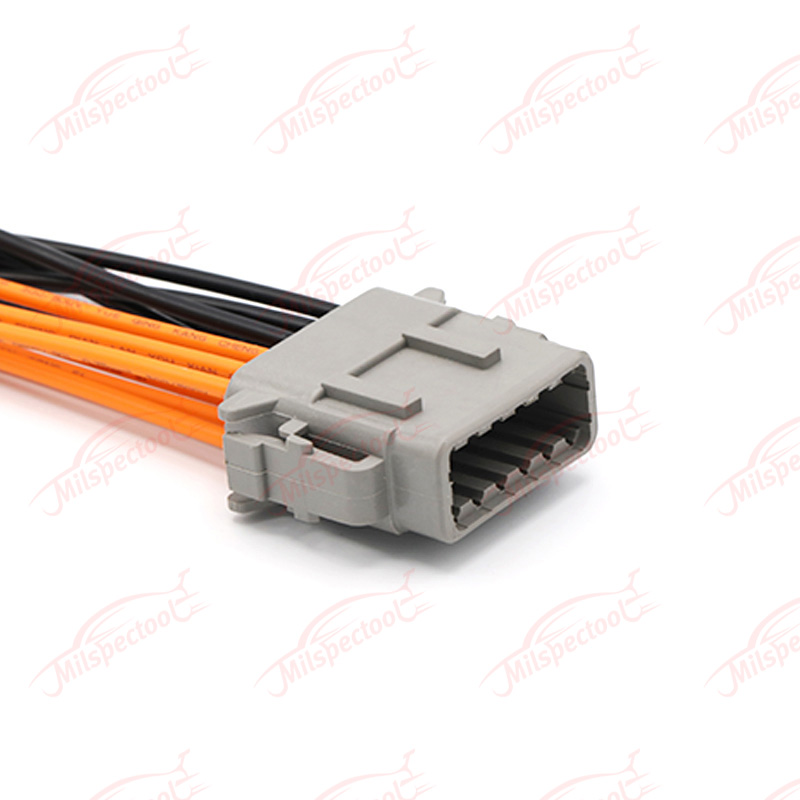

· DTM 12 Position Male Connector (Plug Housing)
· Match with Female Contact (Socket)-Size 20
· Mating Pin Diameter: 1.02 mm [ .04 in ]
· Current Rating: 7.5 Amps all contacts
· Wire Range: 18-22 AWG (0.82-0.32mm sq)
· L: 30.10mm W: 40.01mm H: 15.28mm
· Unit Weight: 13.20g / 0.0291lb
