GM ACCELERATOR PEDAL 6P CONNECTOR KIT

$ 1.050

Item Number

· DE-APS-GT150-6P

· Delphi Item No.: 15326829, 15397577

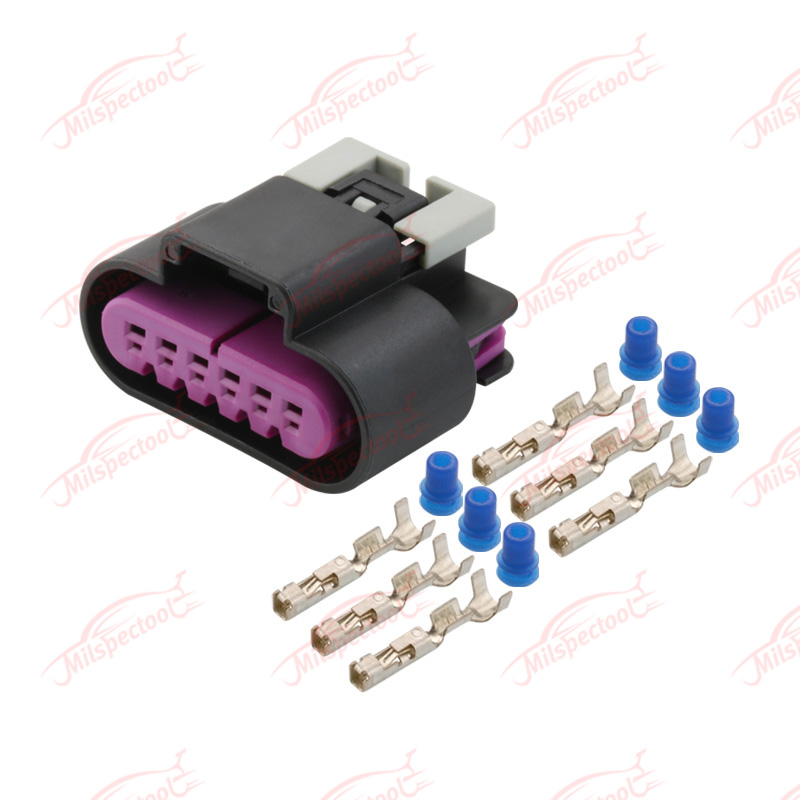

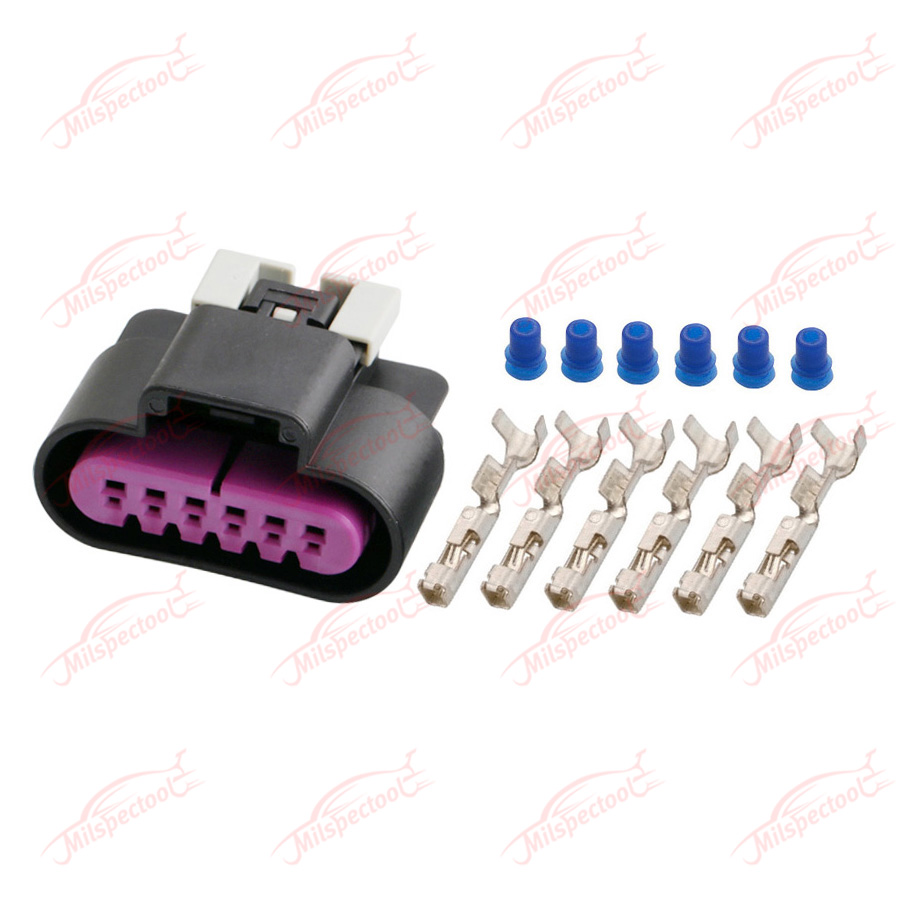

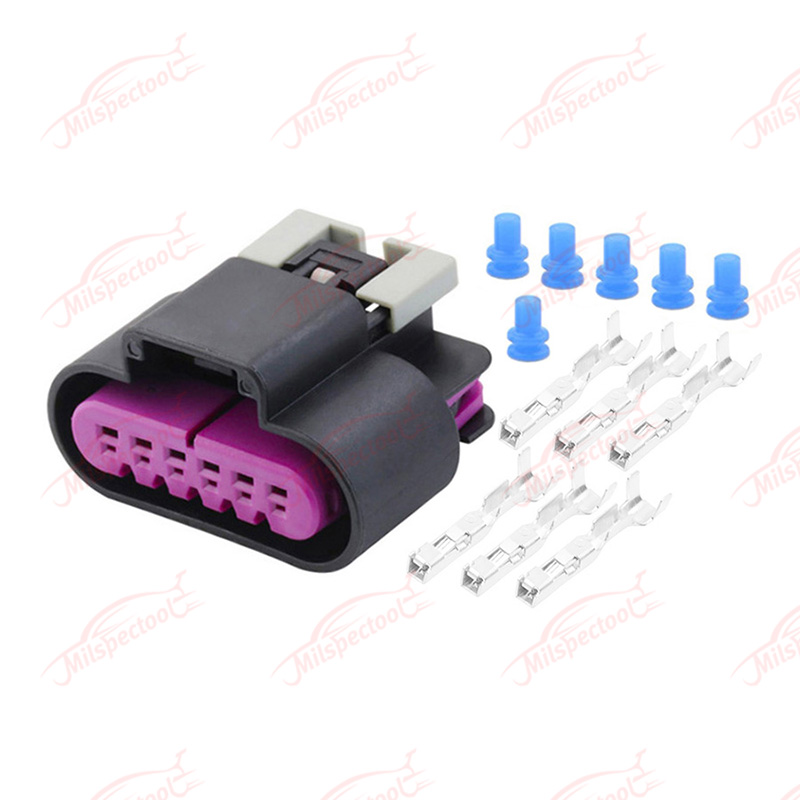

Item Including

· Connector Housing ×1

· Lock Part/TPA ×1

· Female Terminal Contact Pin ×6

· Wire Seal/Cavity Plug Seal ×6

Product Parameter

· Delphi 6P Female Connector (Plug Housing)

· Connector Series: GT150 Sealed

· Mating Pin Diameter: 1.5 mm [ .059 in ]

· Current Rating: 15 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 29.3mm W: 41.7mm H: 23.1mm

· Unit Weight: 15.3g / 0.0337lb

Main Application

· GM LS3, LS7, CTS-V DBW Alternator Pedal Sensor

· Buick/Cadillac Throttle Position Sensor & Rear Lamp
