$ 14.00
Item Number
· K13-1 (M22520/2-08)
· Astro Positioner No.: 615724
Item Including
· Positioner ×1, Color: Blue
Product Parameter

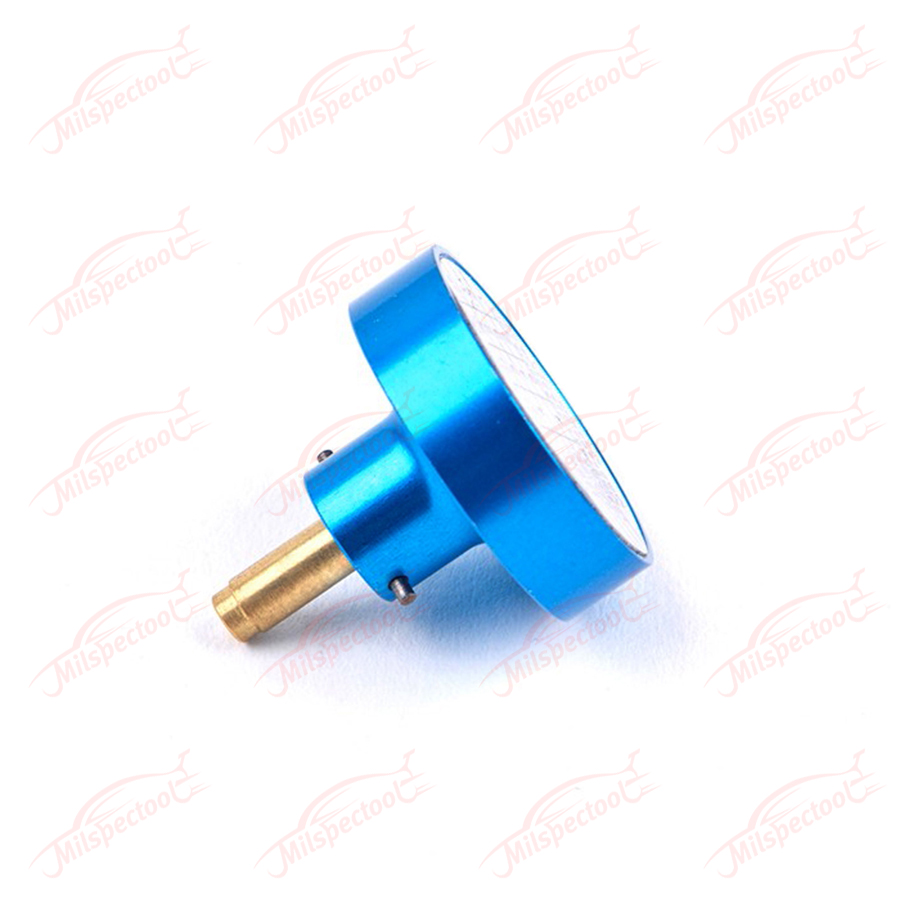

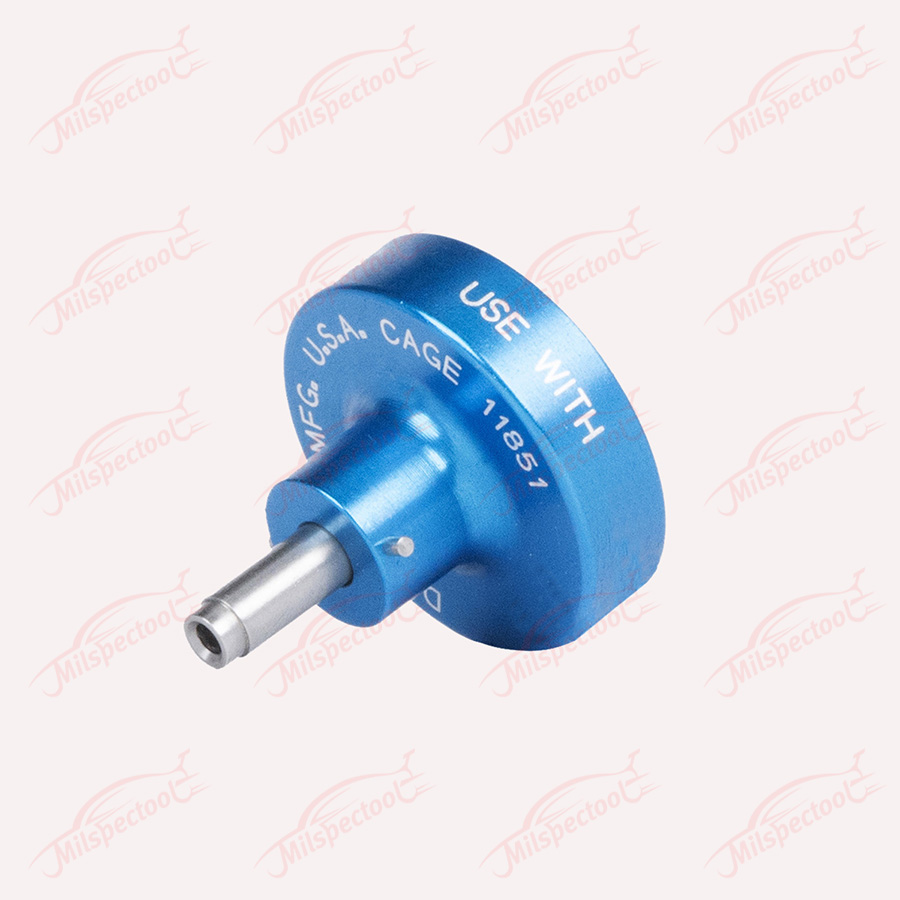

· K Series Positioner for Crimp Tool AFM8
· Used in Avionics and Motorsport Wiring
· Qualified to MIL-DTL-22520 and AS22520
· Wire Range: 20-32 AWG (0.032-0.52mm sq)
· Can Match Daniels/DMC AFM8 Crimp Tool
· Diameter: 22.5mm Height: 26.2mm
· Unit Weight: 19.4g / 0.042lb
Matched Contacts
· M24308/10-1, M24308/11-1
· M39029/11-20-20, M39029/12-20-20
· M24308/16 & /17-1, THRU -5 INNER P&S
