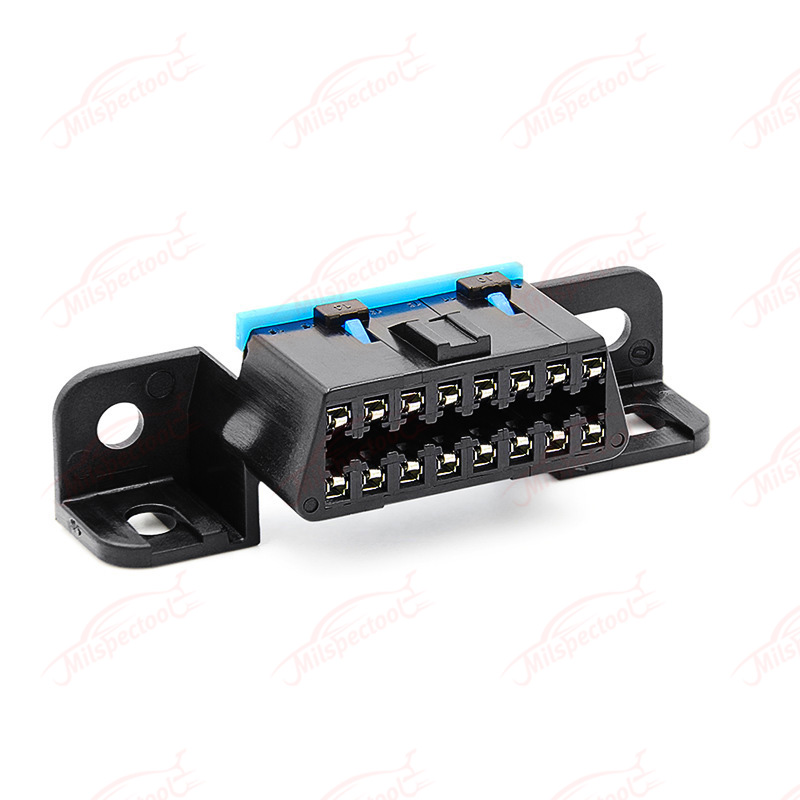

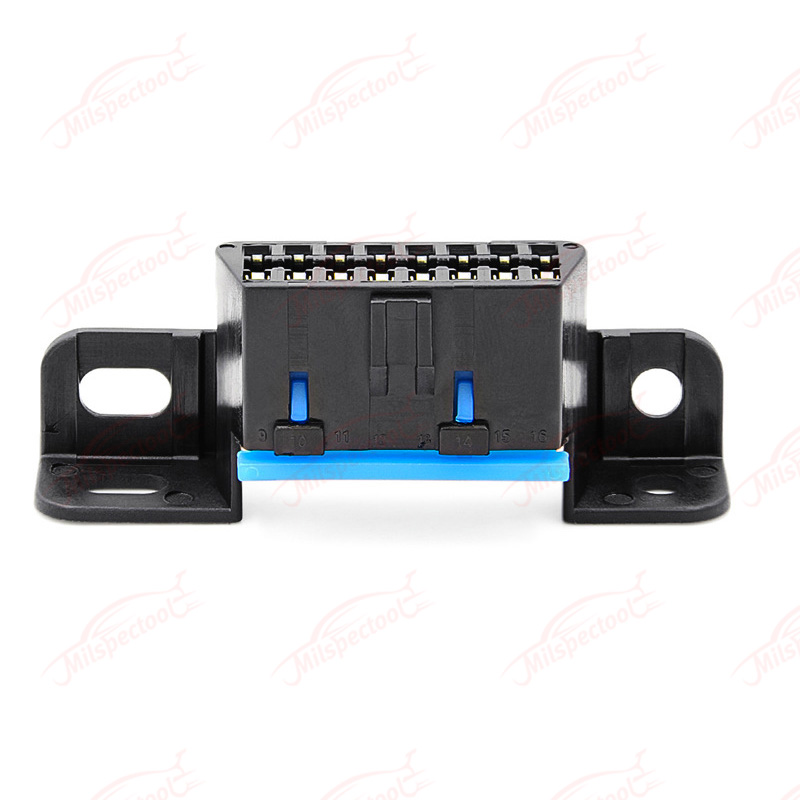

GM OBD2 ECU 16P CONNECTOR KIT

$ 1.015

Item Number

· DE-OBD-MP150-16P

· Delphi Item No.: 12110250

· KET Item No.: MG610761-5

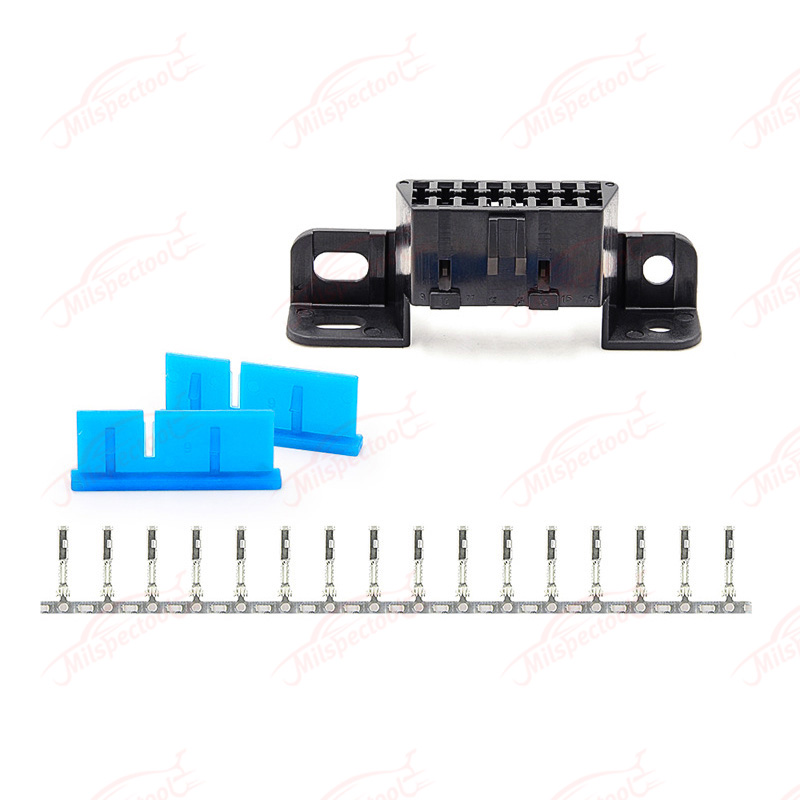

Item Including

· Connector Housing ×1

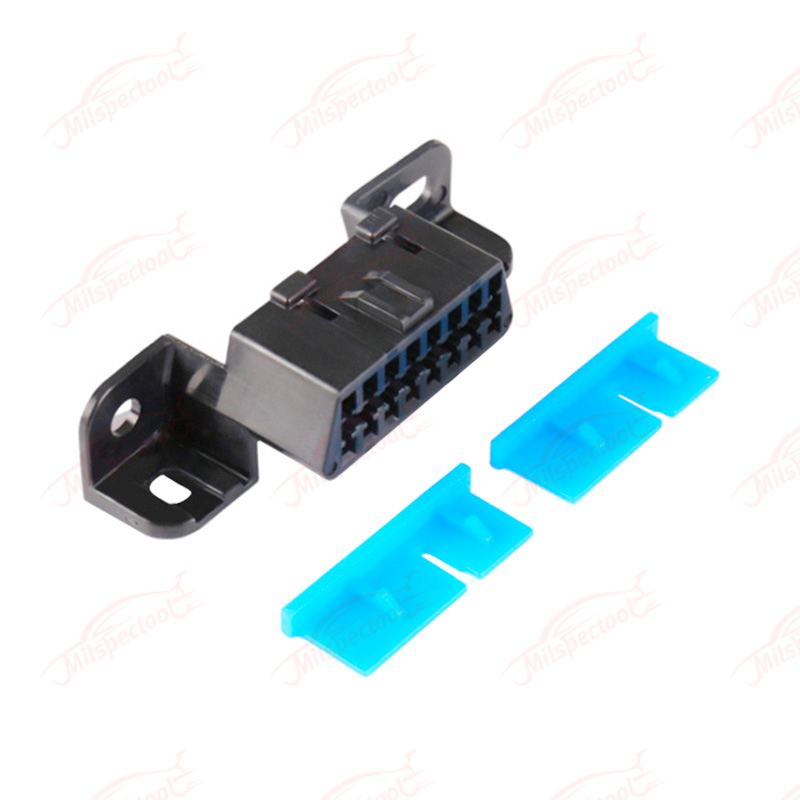

· Lock Part/TPA ×2

· Female Terminal Contact Pin ×16

Product Parameter

· Delphi 16P Female Connector (Plug Housing)

· Connector Series: Metri-Pack 150 Sealed

· Mating Pin Diameter: 1.5 mm [ .059 in ]

· Current Rating: 14 Amps all contacts

· Wire Range: 18-22 AWG (0.82-0.32mm sq)

· L: 27.1mm W: 37.3mm H: 15.7mm

· Unit Weight: 18.2g / 0.0401lb

Main Application

· VW/GM OBDII Detection and Diagnosis Plug (car-side)

· LS Swap OBD2 Serial Port Data Link DLC Repair Kit
